IC socket 050SQ041J6618B
- Suitable Packages: supports QFN40 packages
- Socket Pitch: 0.45mm pitch
- Number Of Pins: 40 pins
- Socket Design: open-top
- Durability: very durable burn-in socket, at least 5000 guaranteed actuations
- Manufacturer: Loranger
- RoHS: RoHS Compliant
- Mounting Type: through hole, solder-mounted on the PCB
- Country Of Origin: USA
- Stock Availability: Out of stock, please inquire for availability
The 050SQ041J6618B test socket, manufactured by Loranger, is a precision-engineered solution tailored for QFN40 packages.
Designed to accommodate packages with dimensions of 5mm by 5mm and a height of 0.9mm, this socket is built to handle the unique requirements of semiconductor testing. It supports 40-pins QFN packages with a pitch of 0.45mm, ensuring accurate alignment and reliable contact during testing.
Crafted with an Open Top design, this socket offers ease of use and a suitable solution for autoloading equipment or robotic handlers. Its robust construction is available in a through hole configuration, solder-mounted on the PCB.
Engineered for longevity, it guarantees at least 5000 actuations (Inserting or removing the device counts as one actuation), and standard operational temperature range.
Socket drawing available upon request.
For additional information regarding this part or if you're unsure whether your package is compatible with this socket, please inquire about part number 050SQ041J6618B

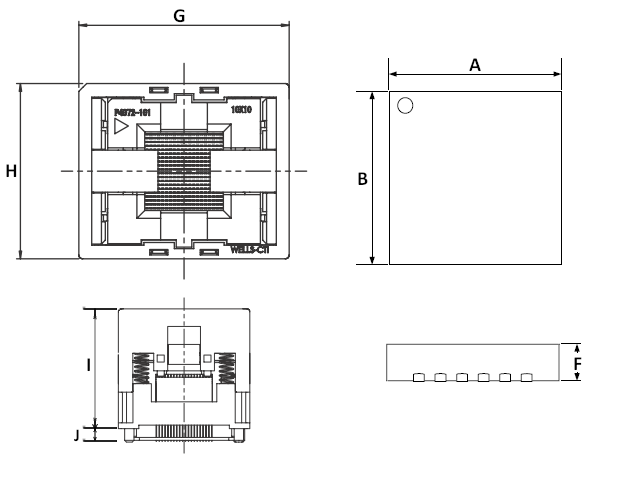

| IC dimensions | socket dimensions | pin length | ||
| A x B | F | G x H x I | J | |
| 5 x 5 | 0.9 | - | - | |
| ||||
