IC socket 648-0482211-SA15H
- Suitable Packages: supports TSOP48 packages
- Socket Pitch: 0.5mm pitch
- Number Of Pins: 48 pins
- Socket Design: open-top
- Durability: very durable burn-in socket, at least 10000 guaranteed actuations
- Manufacturer: Sensa
- RoHS: RoHS Compliant
- Country Of Origin: Japan
- Stock Availability: Out of stock, please inquire for availability

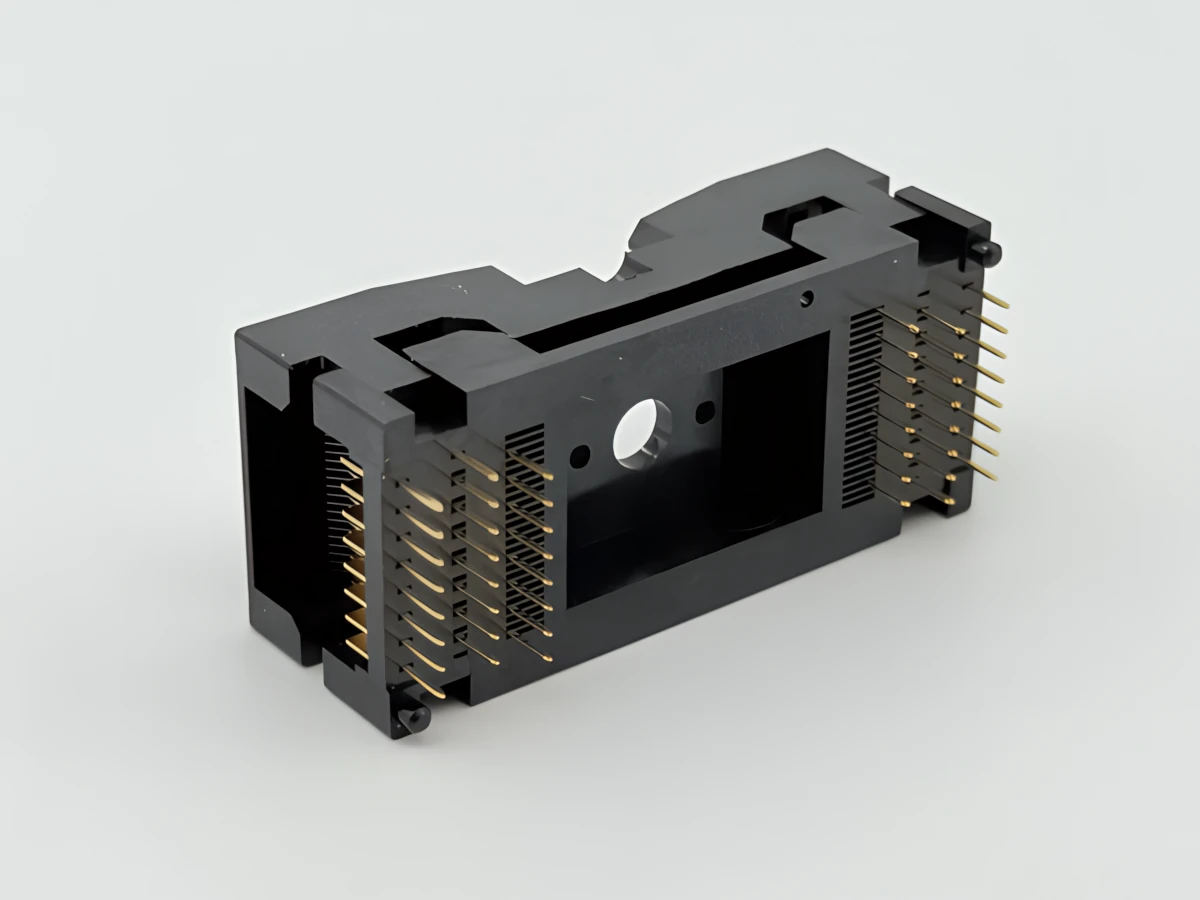

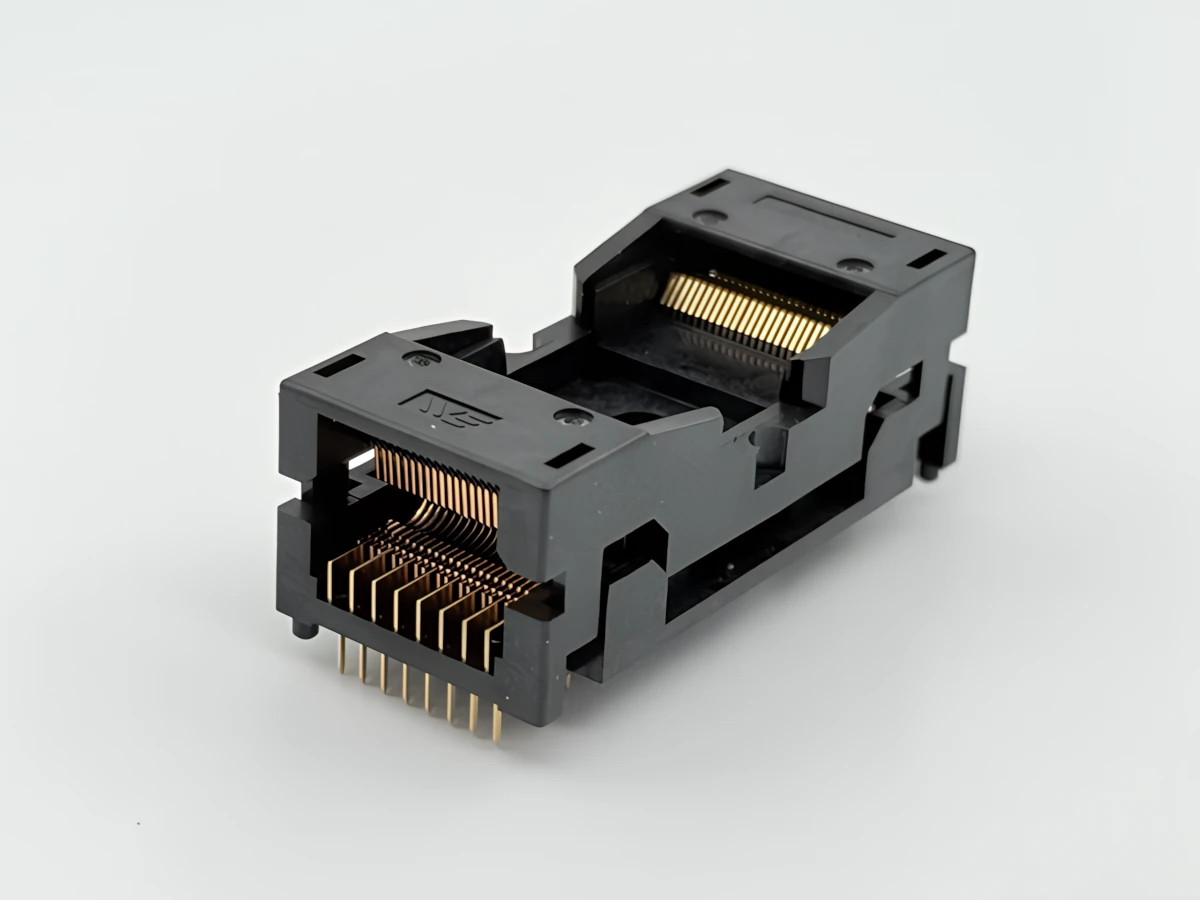

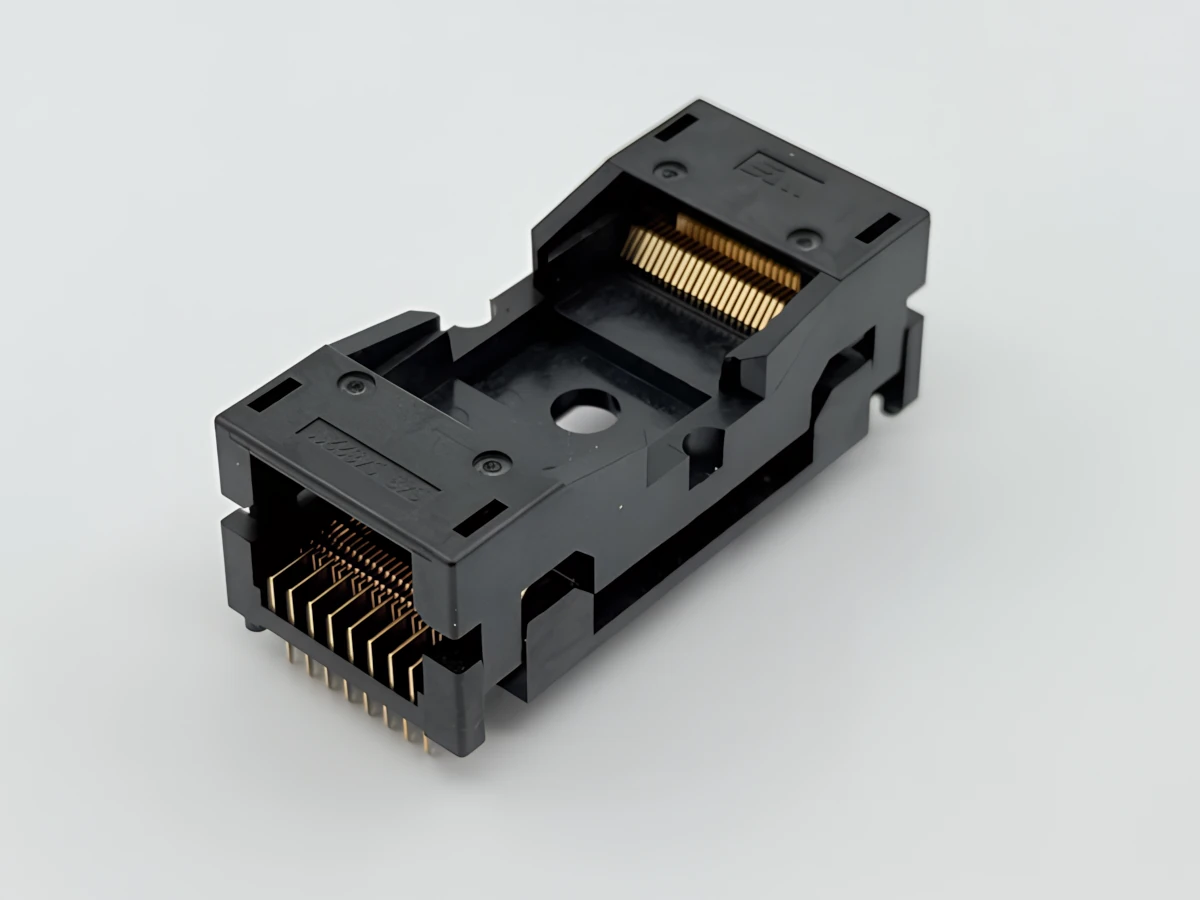

The 648-0482211-SA15H test socket, manufactured by Sensa, is a precision-engineered solution tailored for TSOP48 packages.
Designed to accommodate packages with dimensions of 18.4mm by 12mm, this socket is built to handle the unique requirements of semiconductor testing. It supports 48-pins TSOP packages with a pitch of 0.5mm, ensuring accurate alignment and reliable contact during testing.
Crafted with an Open Top design, this socket offers ease of use and a suitable solution for autoloading equipment or robotic handlers. Its robust construction is available in a through hole configuration, solder-mounted on the PCB.
Engineered for longevity, it guarantees at least 10000 actuations (Inserting or removing the device counts as one actuation), and an operational temperature range of -40.00°C to 150.00°C
Socket drawing available upon request.
For additional information regarding this part or if you're unsure whether your package is compatible with this socket, please inquire about part number 648-0482211-SA15H
| IC dimensions | socket dimensions | pin length | |||
| A | B | C | D | G x H x I | J |
| 18.4 | 20.00 | 19.00 | 12 | 40 x 17 x 13.6 | 3.00 |
| |||||
