IC socket 775C4133-101

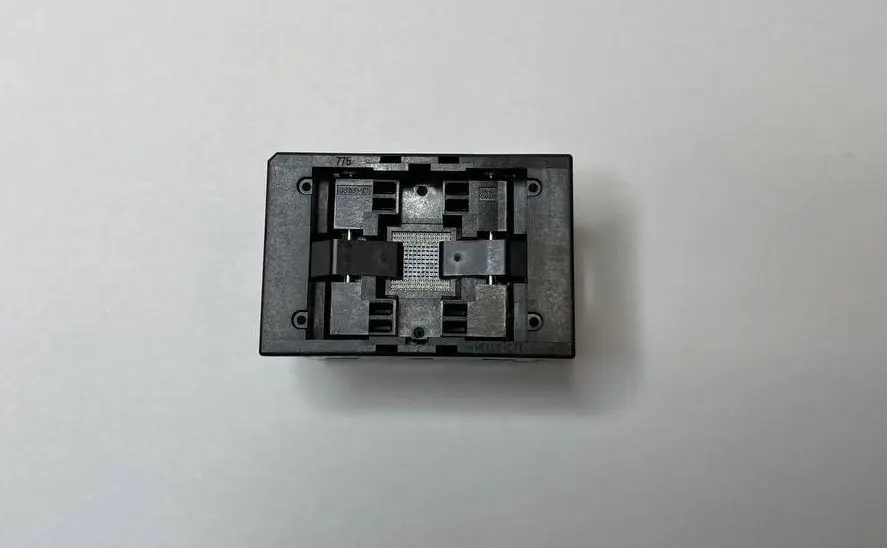

The 775C4133-101 test socket, manufactured by Sensata, is a precision-engineered solution tailored for BGA133 packages.
This socket is designed for 8x8mm 133-ball devices with 0.30mm ball diameter and 0.25mm ball height

Designed to accommodate packages with dimensions of 8mm by 8mm, this socket is built to handle the unique requirements of semiconductor testing. It supports 133-balls BGA packages with a pitch of 0.5mm, ensuring accurate alignment and reliable contact during testing.

Crafted with an Open Top design, this socket offers ease of use and a suitable solution for autoloading equipment or robotic handlers. Its robust construction is available in a surface mount configuration, secured with screws to the PCB.

Engineered for longevity, it guarantees at least 10000 actuations (Inserting or removing the device counts as one actuation), and standard operational temperature range.

Socket drawing available upon request.

For additional information regarding this part or if you're unsure whether your package is compatible with this socket, please inquire about part number 775C4133-101
