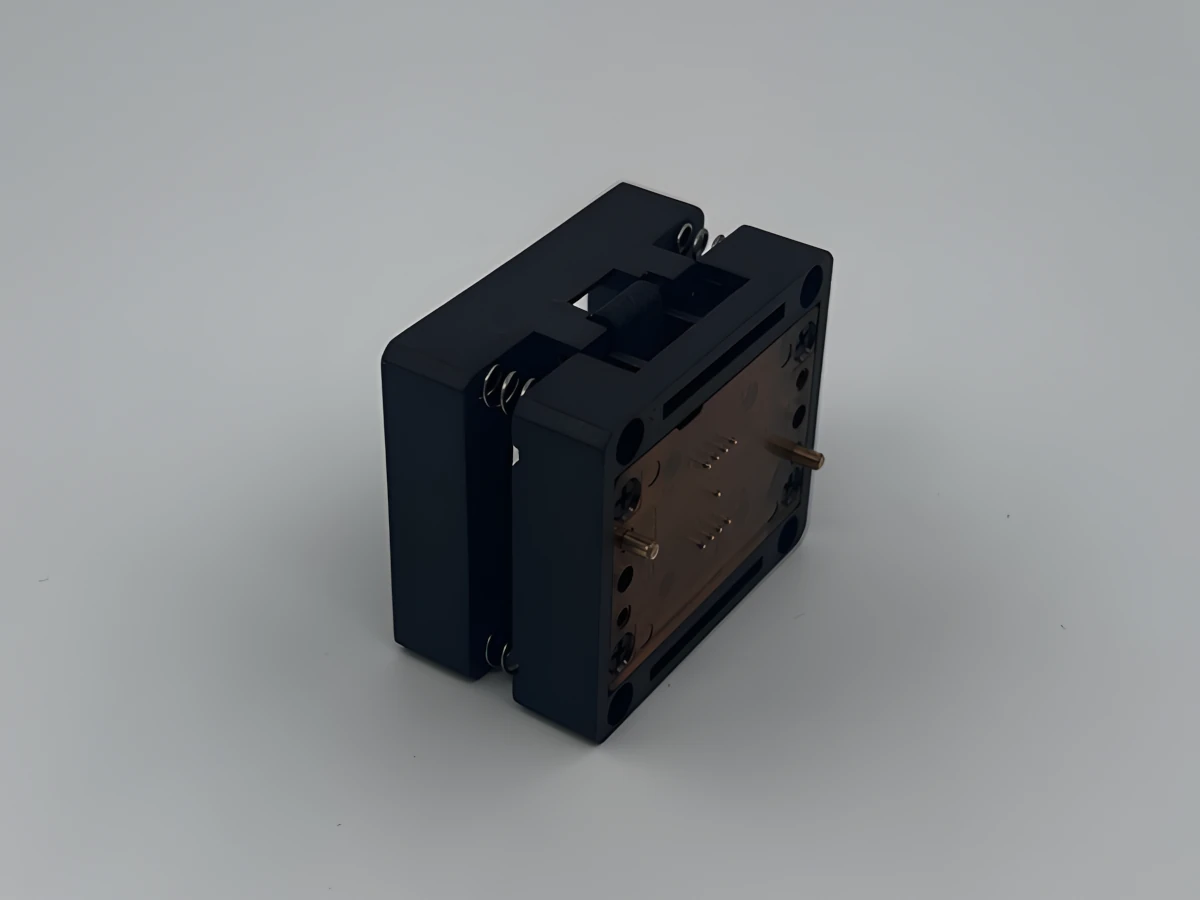

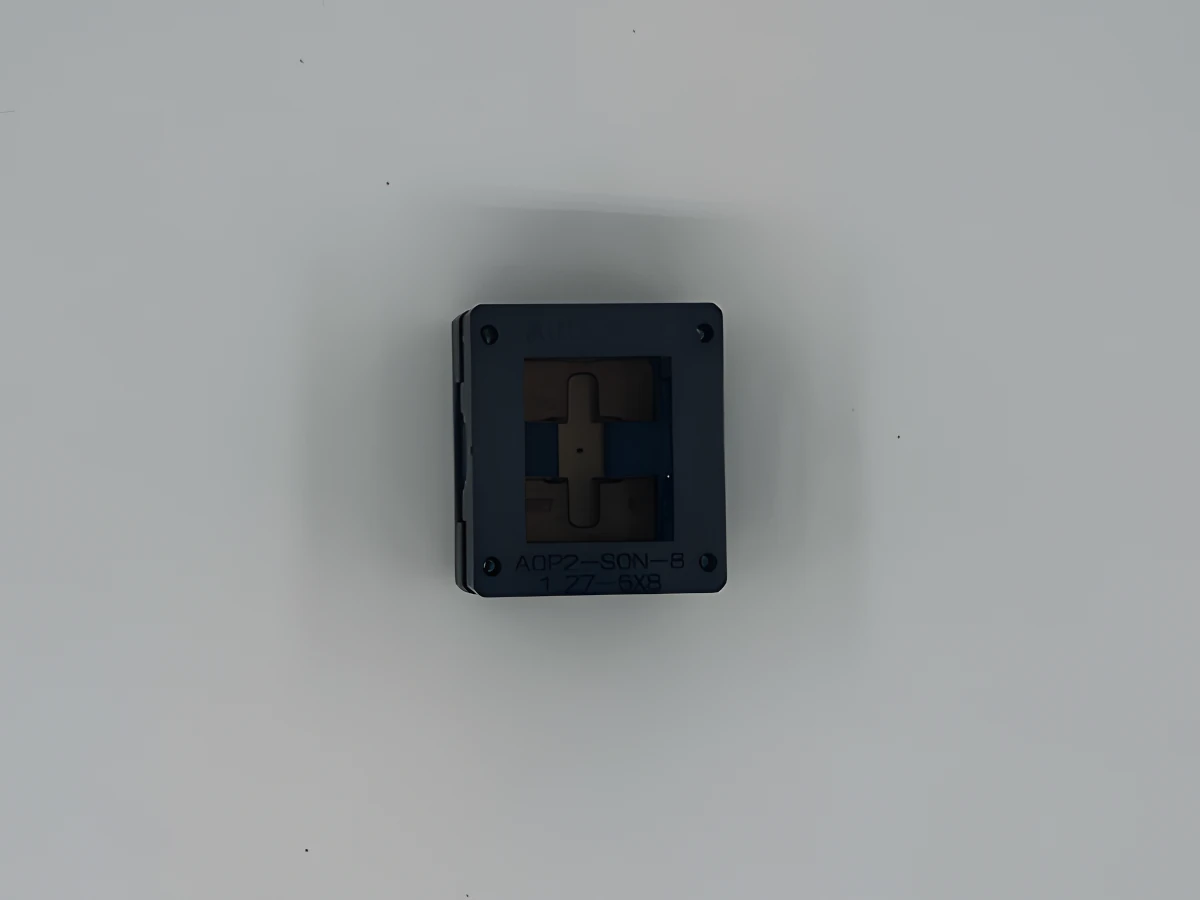

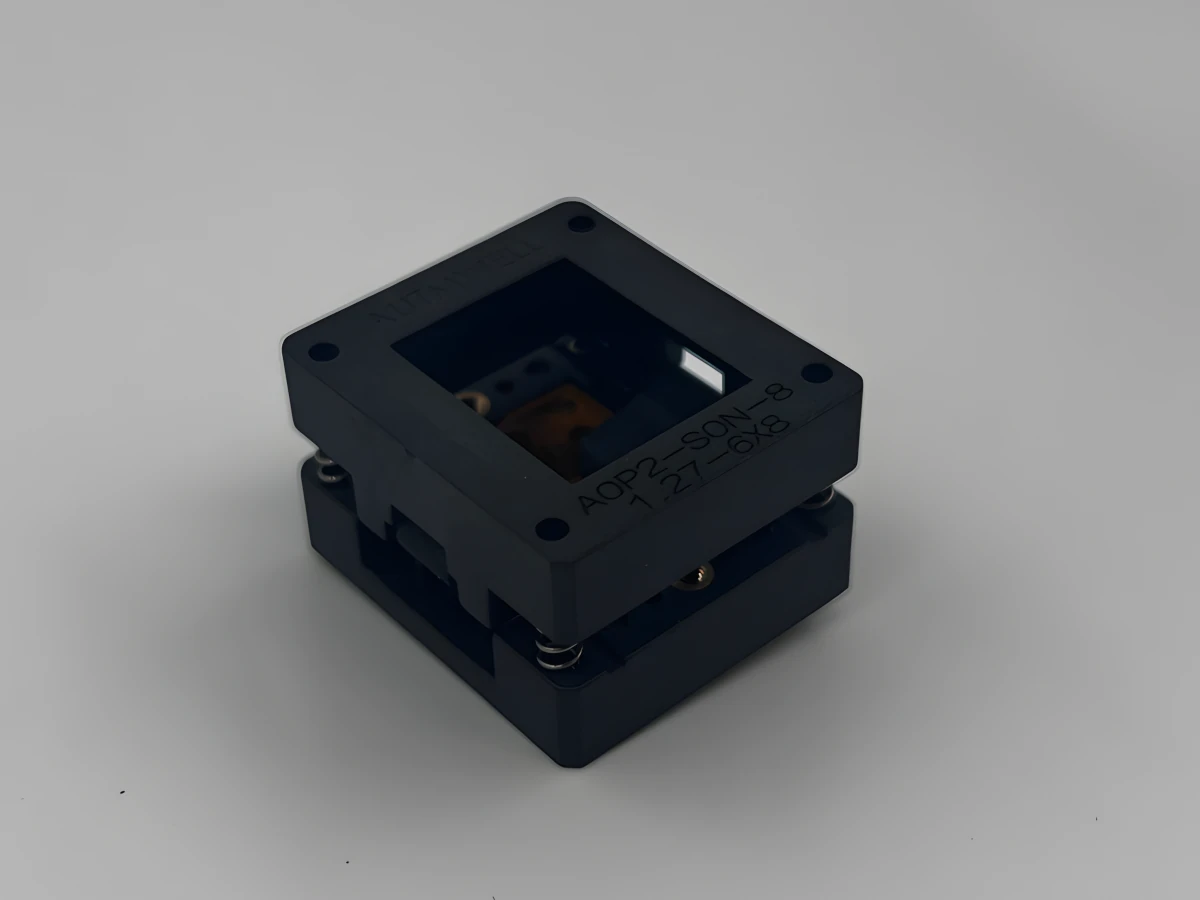

IC socket AOP2-SON-8-1.27-6*8-SMD
- Suitable Packages: supports QFN8 packages
- Socket Pitch: 1.27mm pitch
- Number Of Pins: 8 pins
- Socket Design: open-top
- Durability: very durable burn-in socket, at least 10000 guaranteed actuations
- Manufacturer: Autmwell
- RoHS: RoHS Compliant
- Mounting Type: surface mount, secured with screws to the PCB
- Country Of Origin: Taiwan
- Stock Availability: Out of stock, please inquire for availability
The AOP2-SON-8-1.27-6*8-SMD test socket, manufactured by Autmwell, is a precision-engineered solution tailored for QFN8 packages.
IC test open-top socket is dedicated for QFN/SON packages with 6x8mm that can be mounted to PCB with supplied screws.
Designed to accommodate packages with dimensions of 8mm by 6mm and a height of 0.75mm, this socket is built to handle the unique requirements of semiconductor testing. It supports 8-pins QFN packages with a pitch of 1.27mm, ensuring accurate alignment and reliable contact during testing.
Crafted with an Open Top design, this socket offers ease of use and a suitable solution for autoloading equipment or robotic handlers. Its robust construction is available in a surface mount configuration, secured with screws to the PCB.
Engineered for longevity, it guarantees at least 10000 actuations (Inserting or removing the device counts as one actuation), and an operational temperature range of -40.00°C to 150.00°C
Socket drawing available upon request.
For additional information regarding this part or if you're unsure whether your package is compatible with this socket, please inquire about part number AOP2-SON-8-1.27-6*8-SMD
| IC dimensions | socket dimensions | pin length | ||
| A x B | F | G x H x I | J | |
| 8 x 6 | 0.75 | 32 x 28 x 17.9 | - | |
| ||||
