IC socket IC357-0804-003P
- Suitable Packages: supports QFP80 packages
- Socket Pitch: 0.65mm pitch
- Number Of Pins: 80 pins
- Socket Design: open-top
- Durability: very durable burn-in socket, at least 10000 guaranteed actuations
- Manufacturer: Yamaichi
- RoHS: RoHS Compliant
- Mounting Type: through hole, solder-mounted on the PCB
- Country Of Origin: Japan
- Stock Availability: In stock for quick delivery

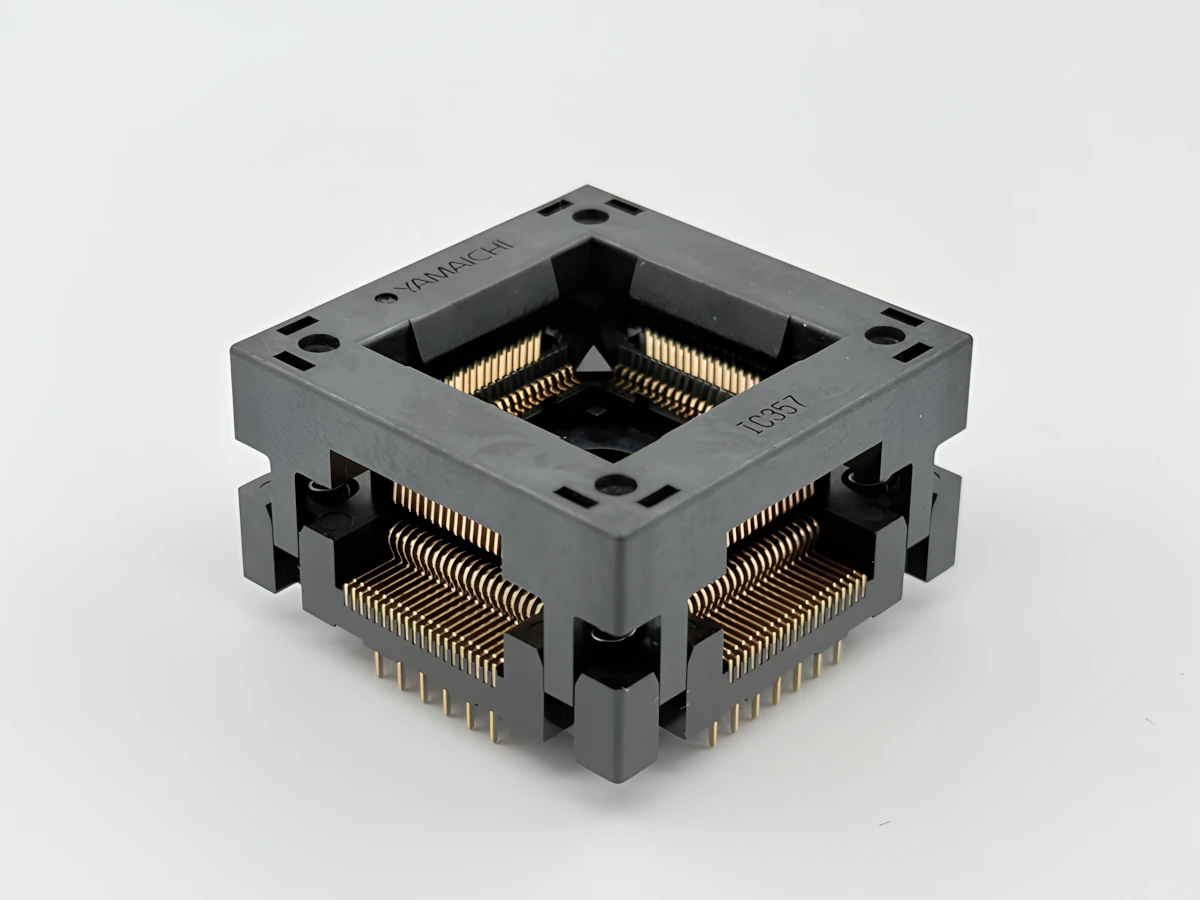

The IC357-0804-003P test socket, manufactured by Yamaichi, is a precision-engineered solution tailored for QFP80 packages.
Designed to accommodate packages with dimensions of 14mm by 14mm, this socket is built to handle the unique requirements of semiconductor testing. It supports 80-pins QFP packages with a pitch of 0.65mm, ensuring accurate alignment and reliable contact during testing.

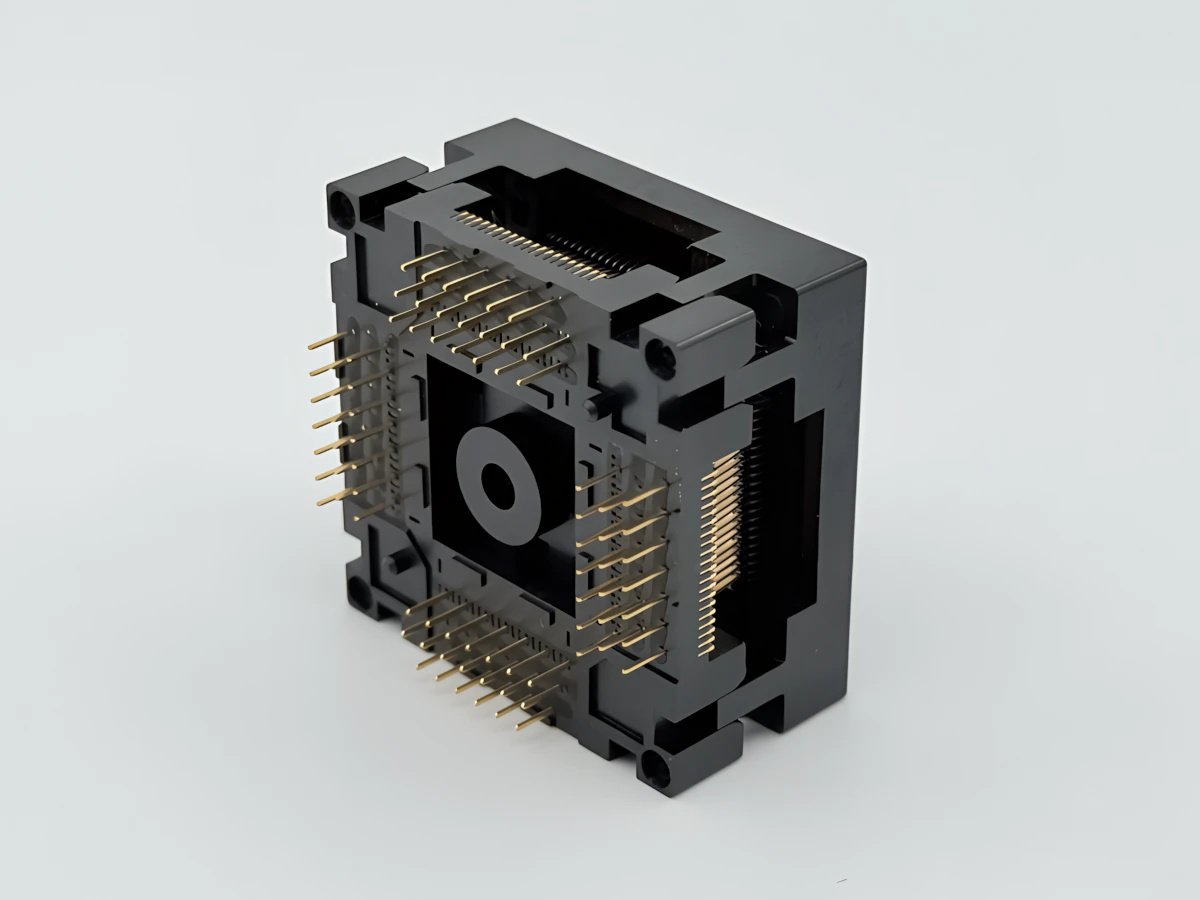

Crafted with an Open Top design, this socket offers ease of use and a suitable solution for autoloading equipment or robotic handlers. Its robust construction is available in a through hole configuration, solder-mounted on the PCB.
Engineered for longevity, it guarantees at least 10000 actuations (Inserting or removing the device counts as one actuation), and an operational temperature range of -40.00°C to 150.00°C
Socket drawing available upon request.
For additional information regarding this part or if you're unsure whether your package is compatible with this socket, please inquire about part number IC357-0804-003P
| IC dimensions | socket dimensions | pin length | |||
| A x B | C x D | E | F | G x H x I | J |
| 14 x 14 | 17.2 x 17.2 | - | 0.50 | 31.9 x 31.9 | - |
| |||||
