IC socket IC357-1444-107P-2
- Suitable Packages: supports QFP144 packages
- Socket Pitch: 0.5mm pitch
- Number Of Pins: 144 pins
- Socket Design: open-top
- Durability: very durable burn-in socket, at least 10000 guaranteed actuations
- Manufacturer: Yamaichi
- RoHS: RoHS Compliant
- Mounting Type: through hole, solder-mounted on the PCB
- Country Of Origin: Japan
- Stock Availability: Out of stock, please inquire for availability

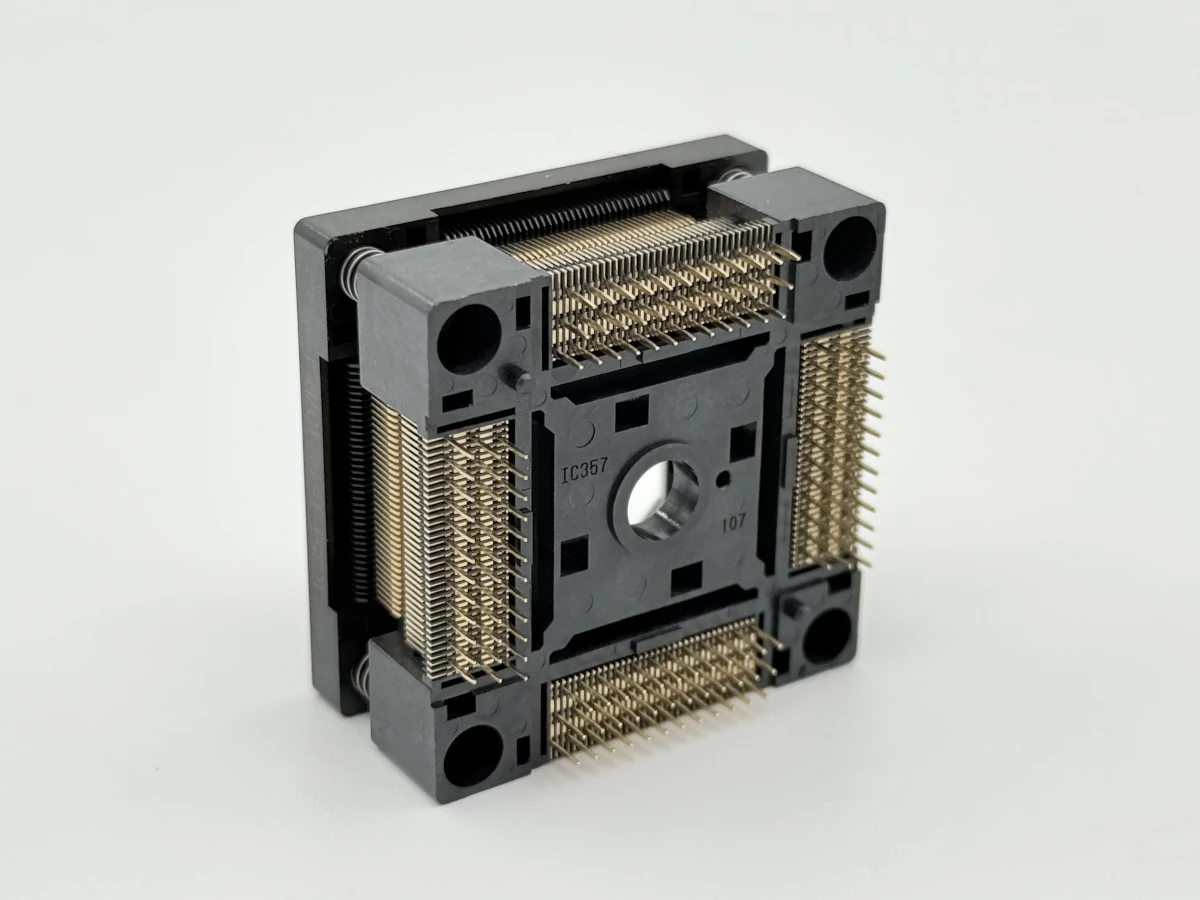

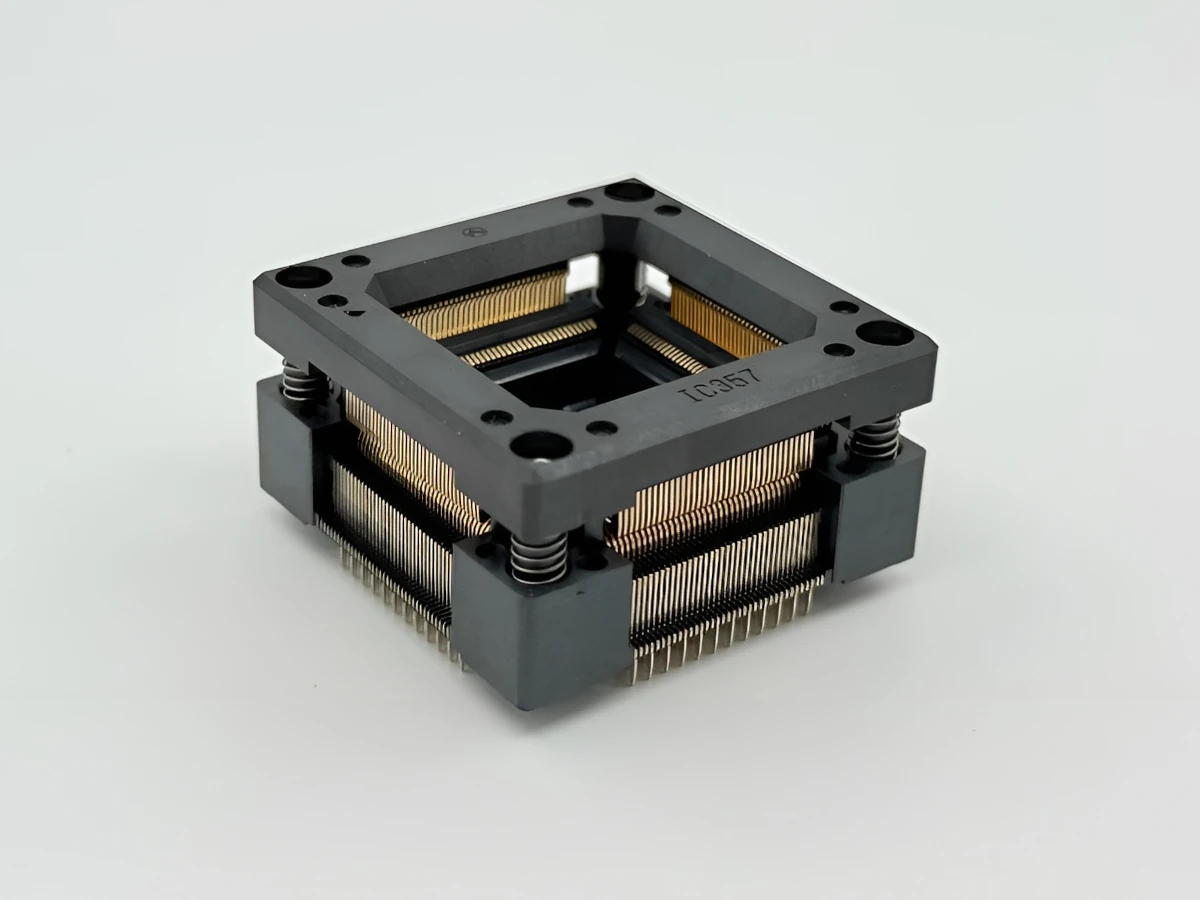

The IC357-1444-107P-2 test socket, manufactured by Yamaichi, is a precision-engineered solution tailored for QFP144 packages.
Designed to accommodate packages with dimensions of 20mm by 20mm and a height of 1.40mm, this socket is built to handle the unique requirements of semiconductor testing. It supports 144-pins QFP packages with a pitch of 0.5mm, ensuring accurate alignment and reliable contact during testing.
Crafted with an Open Top design, this socket offers ease of use and a suitable solution for autoloading equipment or robotic handlers. Its robust construction is available in a through hole configuration, solder-mounted on the PCB.
Engineered for longevity, it guarantees at least 10000 actuations (Inserting or removing the device counts as one actuation), and an operational temperature range of -40.00°C to 150.00°C
Socket drawing available upon request.
For additional information regarding this part or if you're unsure whether your package is compatible with this socket, please inquire about part number IC357-1444-107P-2
| IC dimensions | socket dimensions | pin length | |||
| A x B | C x D | E | F | G x H x I | J |
| 20 x 20 | 22 x 22 | - | - | 37 x 37 x 18.50 | 2.8 |
| |||||
