IC socket LGA14-P0.5-2.5X3X0.76

Suitable Packages: supports LGA14 packages
Socket Pitch: 0.5mm pitch
Number Of Pins: 14 pins
Socket Design: clam-shell
Durability: very durable burn-in socket, at least 200000 guaranteed actuations
Manufacturer: KZT
RoHS: RoHS Compliant
Mounting Type: surface mount, secured with screws to the PCB
Country Of Origin: China
Stock Availability: Out of stock, please inquire for availability

IC socket specifications

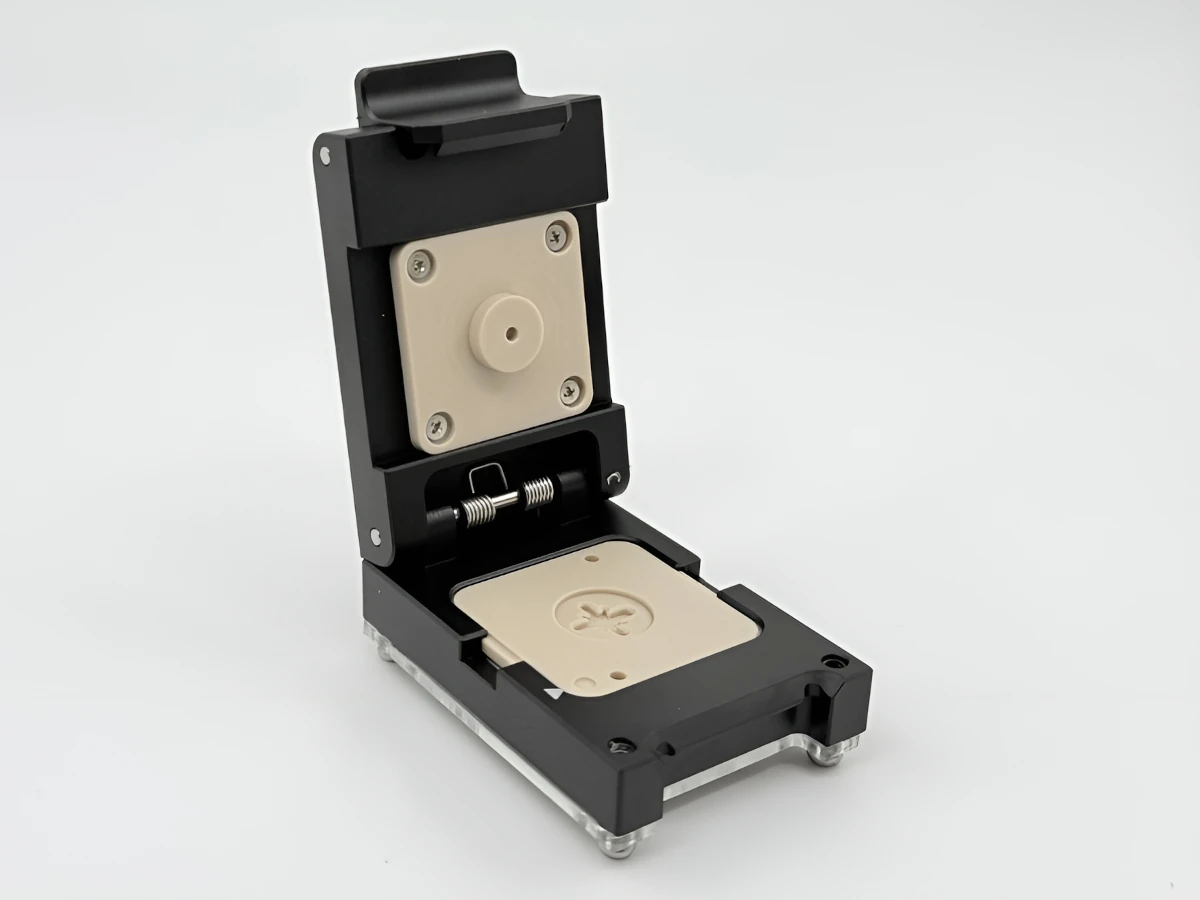

The LGA14-P0.5-2.5X3X0.76 test socket, manufactured by KZT, is a precision-engineered solution tailored for LGA14 packages.

Designed to accommodate packages with specific dimenensions, this socket is built to handle the unique requirements of semiconductor testing. It supports 14-pins LGA packages with a pitch of 0.5mm, ensuring accurate alignment and reliable contact during testing.

Featuring a Clam-Shell design, this socket ensures a secure and stable connection during testing and higher variability of package thickness acceptance. Its hinged mechanism allows for effortless manual operation, making it ideal for frequent device insertion and removal. Its robust construction is available in a surface mount configuration, secured with screws to the PCB.

Engineered for longevity, it guarantees at least 200000 actuations (Opening and closing the lid counts as one actuation), and an operational temperature range of -20.00°C to 120.00°C

Socket drawing available upon request.

For additional information regarding this part or if you're unsure whether your package is compatible with this socket, please inquire about part number LGA14-P0.5-2.5X3X0.76
