IC socket M3232-N0707N-068035-IC03
- Suitable Packages: supports QFN32 packages
- Socket Pitch: 0.35mm pitch
- Number Of Pins: 32 pins
- Socket Design: open-top
- Durability: very durable burn-in socket, at least 50000 guaranteed actuations
- Manufacturer: ICSOCKET
- RoHS: RoHS Compliant
- Mounting Type: surface mount, secured with screws to the PCB
- Country Of Origin: Taiwan
- Stock Availability: Out of stock, please inquire for availability

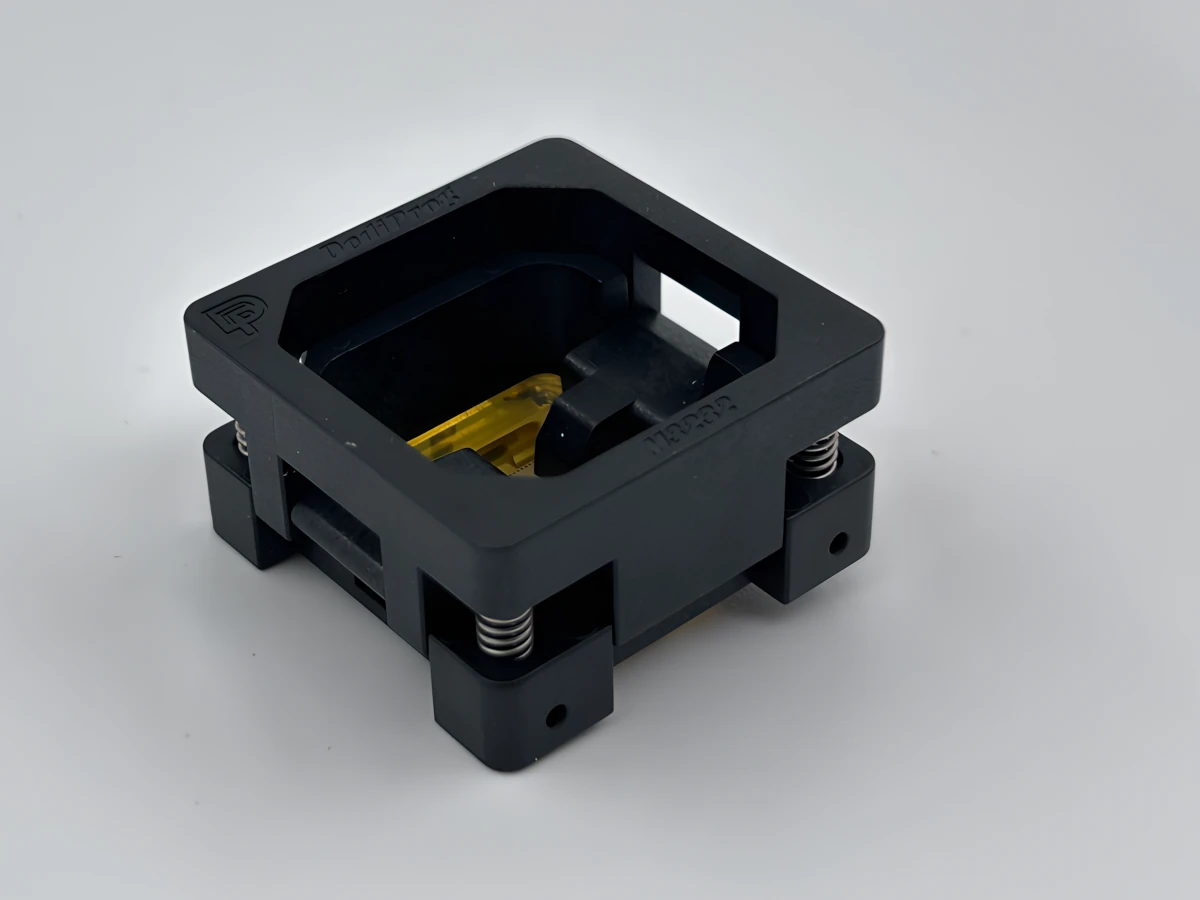

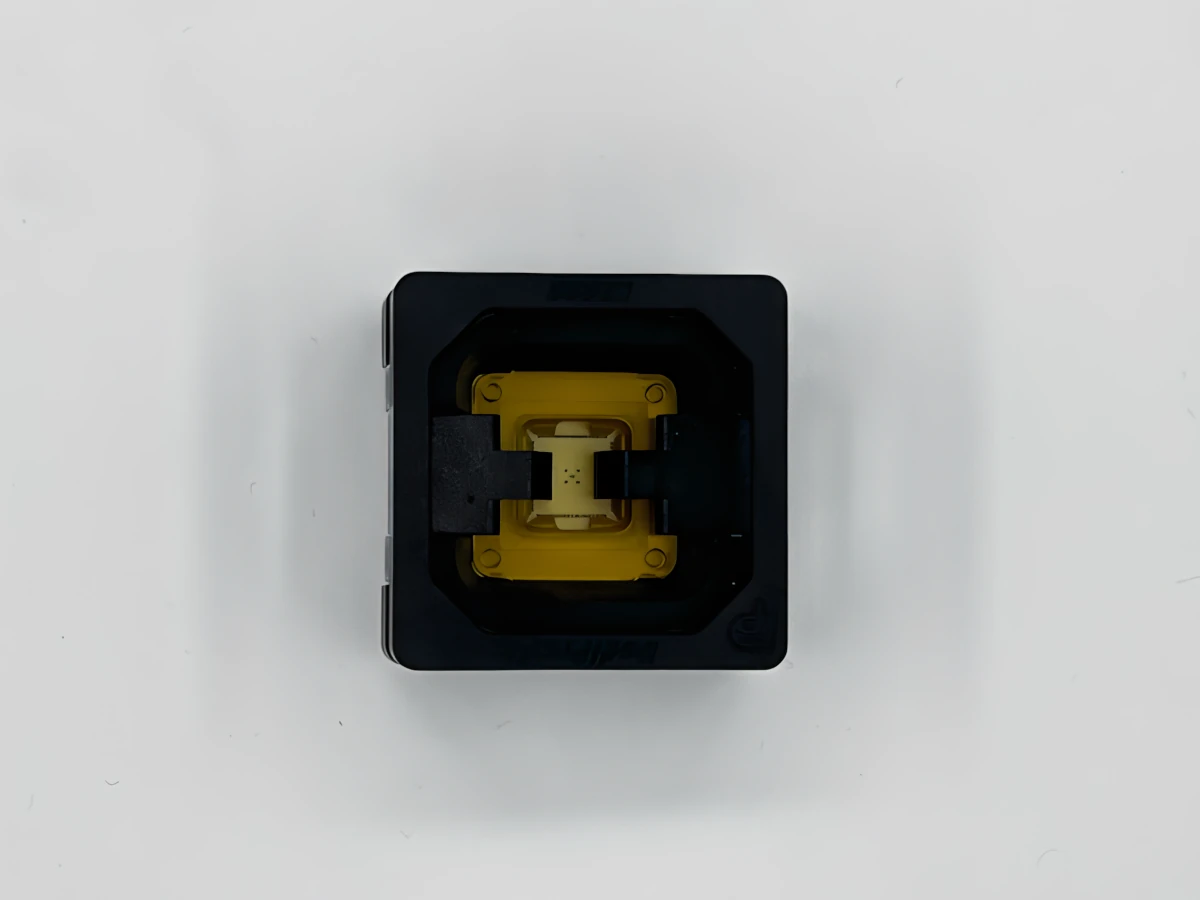

The M3232-N0707N-068035-IC03 test socket, manufactured by ICSOCKET, is a precision-engineered solution tailored for QFN32 packages.
Designed to accommodate packages with dimensions of 7mm by 7mm and a height of 0.85mm, this socket is built to handle the unique requirements of semiconductor testing. It supports 32-pins QFN packages with a pitch of 0.35mm, ensuring accurate alignment and reliable contact during testing.
Crafted with an Open Top design, this socket offers ease of use and a suitable solution for autoloading equipment or robotic handlers. Its robust construction is available in a surface mount configuration, secured with screws to the PCB.
Engineered for longevity, it guarantees at least 50000 actuations (Inserting or removing the device counts as one actuation), and an operational temperature range of 150.00°C to -40.00°C
Socket drawing available upon request.
For additional information regarding this part or if you're unsure whether your package is compatible with this socket, please inquire about part number M3232-N0707N-068035-IC03
| IC dimensions | socket dimensions | pin length | ||
| A x B | F | G x H x I | J | |
| 7 x 7 | 0.85 | 32 x 32 x 16.48 | - | |
| ||||
