IC socket OTQ-100S-0.5-001
- Suitable Packages: supports QFP100 packages
- Socket Pitch: 0.5mm pitch
- Number Of Pins: 100 pins
- Socket Design: open-top
- Durability: very durable burn-in socket, at least 10000 guaranteed actuations
- Manufacturer: Enplas
- RoHS: RoHS Compliant
- Mounting Type: through hole, solder-mounted on the PCB
- Country Of Origin: Japan
- Stock Availability: Bulk quantities available

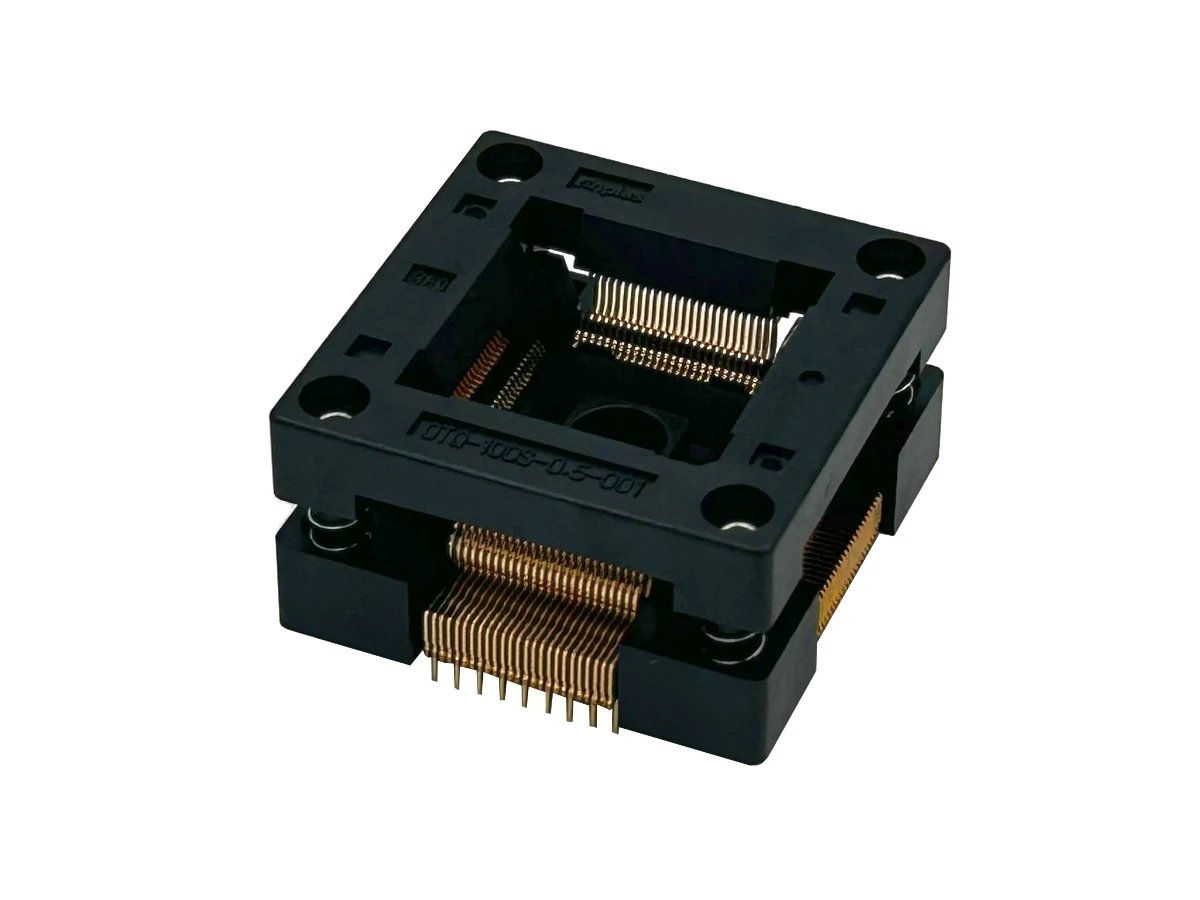

The OTQ-100S-0.5-001 test socket, manufactured by Enplas, is a precision-engineered solution tailored for QFP100 packages.
Designed to accommodate packages with dimensions of 14mm by 14mm, this socket is built to handle the unique requirements of semiconductor testing. It supports 100-pins QFP packages with a pitch of 0.5mm, ensuring accurate alignment and reliable contact during testing.
Crafted with an Open Top design, this socket offers ease of use and a suitable solution for autoloading equipment or robotic handlers. Its robust construction is available in a through hole configuration, solder-mounted on the PCB.
Engineered for longevity, it guarantees at least 10000 actuations (Inserting or removing the device counts as one actuation), and standard operational temperature range.
Socket drawing available upon request
Fitting socket receptacle for IC socket OTQ-100S-0.5-001 is R-OTQ-100S-0.5-001.
For additional information regarding this part or if you're unsure whether your package is compatible with this socket, please inquire about part number OTQ-100S-0.5-001

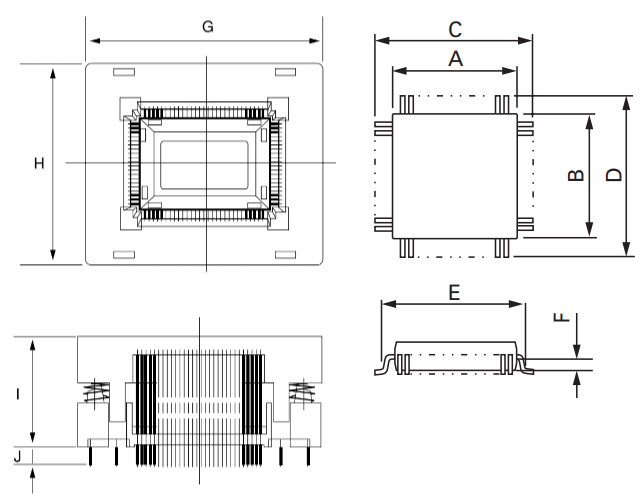

| IC dimensions | socket dimensions | pin length | |||
| A x B | C x D | E | F | G x H x I | J |
| 14 x 14 | 16 x 16 | - | 2.5 | 31.9 x 31.9 x 16.5 | 2.6 |
| |||||
