IC socket OTQ-48-0.5-10
- Suitable Packages: supports QFP48 packages
- Socket Pitch: 0.5mm pitch
- Number Of Pins: 48 pins
- Socket Design: open-top
- Durability: very durable burn-in socket, at least 10000 guaranteed actuations
- Manufacturer: Enplas
- RoHS: RoHS Compliant
- Mounting Type: through hole, solder-mounted on the PCB
- Country Of Origin: Japan
- Stock Availability: Limited stock available

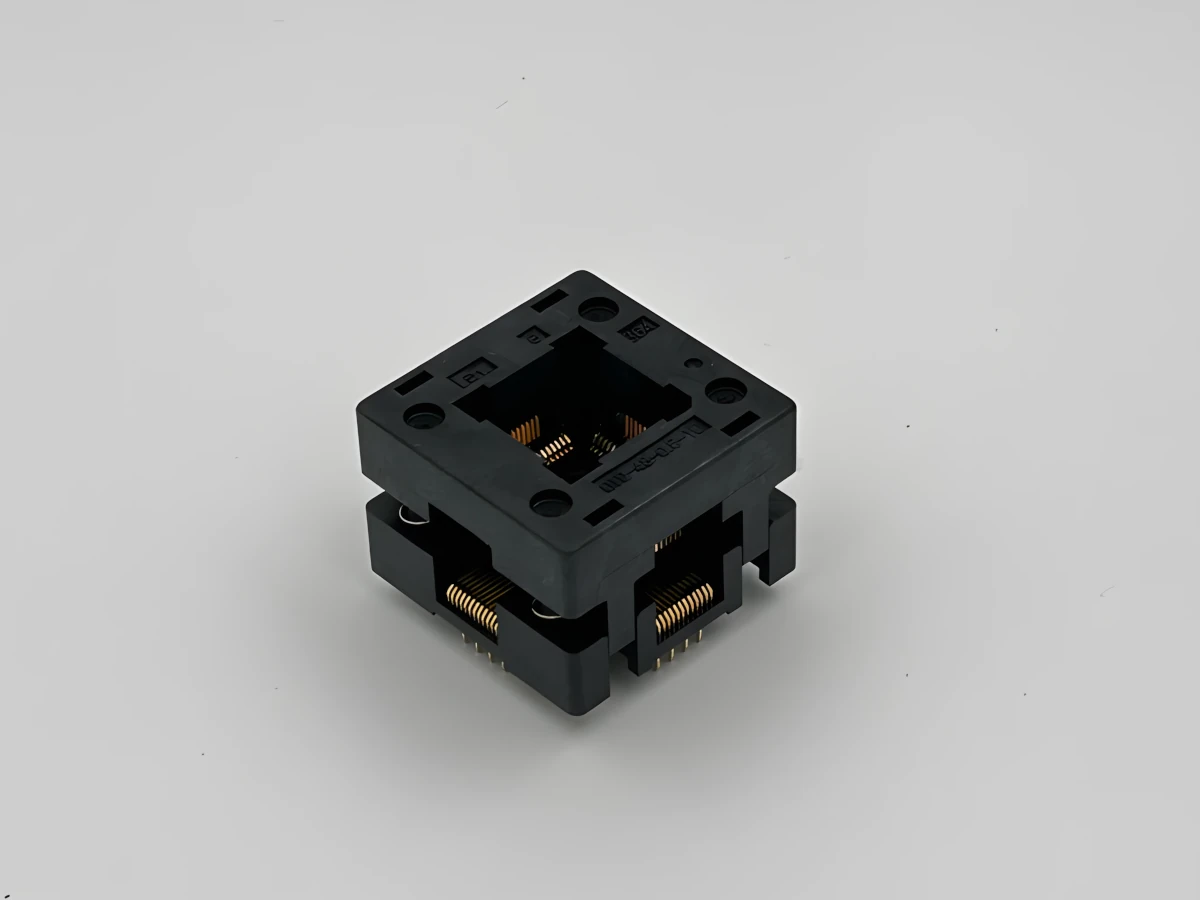

The OTQ-48-0.5-10 test socket, manufactured by Enplas, is a precision-engineered solution tailored for QFP48 packages.
Designed to accommodate packages with dimensions of 7.6mm by 7.6mm and a height of 1.2mm, this socket is built to handle the unique requirements of semiconductor testing. It supports 48-pins QFP packages with a pitch of 0.5mm, ensuring accurate alignment and reliable contact during testing.
Crafted with an Open Top design, this socket offers ease of use and a suitable solution for autoloading equipment or robotic handlers. Its robust construction is available in a through hole configuration, solder-mounted on the PCB.
Engineered for longevity, it guarantees at least 10000 actuations (Inserting or removing the device counts as one actuation), and an operational temperature range of -65.00°C to 150.00°C
Socket drawing available upon request.
For additional information regarding this part or if you're unsure whether your package is compatible with this socket, please inquire about part number OTQ-48-0.5-10
| IC dimensions | socket dimensions | pin length | |||
| A x B | C x D | E | F | G x H x I | J |
| 7.6 x 7.6 | 9 x 9 | 8 | 0.625 | 24 x 24 x 16.5 | 2.6 |
| |||||
