IC socket OTS-16(28)-1.27-04

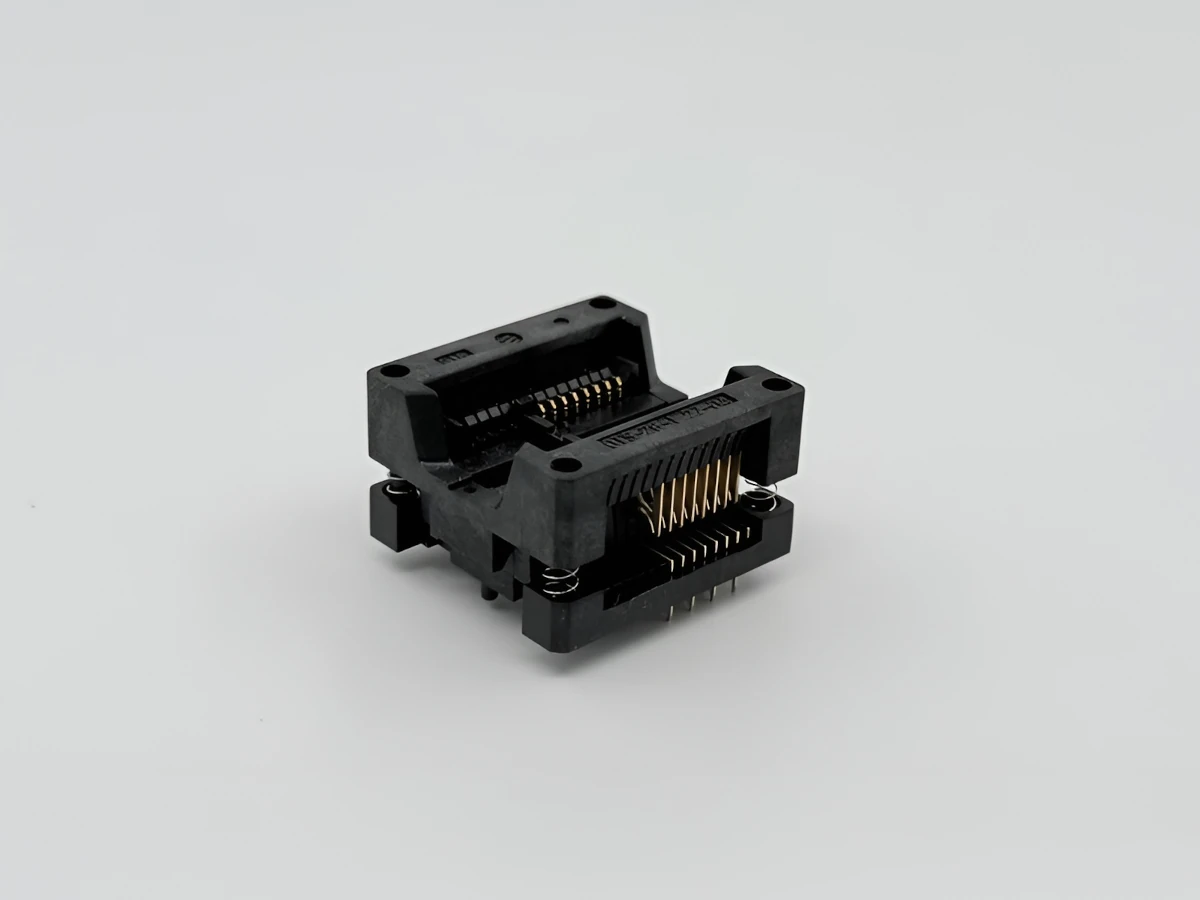

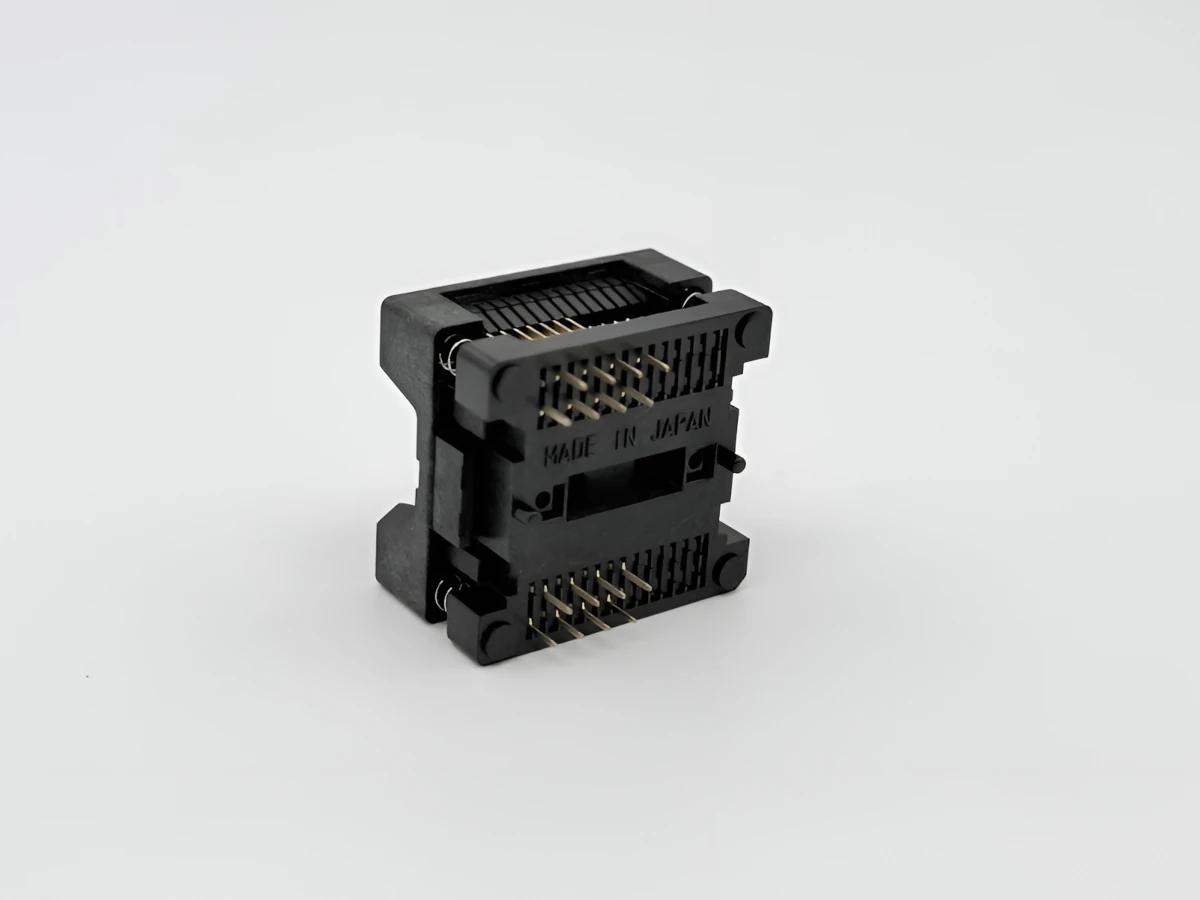

The OTS-16(28)-1.27-04 test socket, manufactured by Enplas, is a precision-engineered solution tailored for SOIC16 packages.
IC socket SOIC OTS-16(28)-1.27-04 is depopulated version of OTS-28-1.27-04

Designed to accommodate packages with dimensions of 7.5mm by 10.20mm and a height of 2.80mm, this socket is built to handle the unique requirements of semiconductor testing. It supports 16-pins SOIC packages with a pitch of 1.27mm, ensuring accurate alignment and reliable contact during testing.

Crafted with an Open Top design, this socket offers ease of use and a suitable solution for autoloading equipment or robotic handlers. Its robust construction is available in a through hole configuration, solder-mounted on the PCB.

Engineered for longevity, it guarantees at least 10000 actuations (Inserting or removing the device counts as one actuation), and an operational temperature range of -65.00°C to 150.00°C

Socket drawing available upon request.

For additional information regarding this part or if you're unsure whether your package is compatible with this socket, please inquire about part number OTS-16(28)-1.27-04
