IC socket QFP-240-0.5-601-0000066A
- Suitable Packages: supports QFP240 packages
- Socket Pitch: 0.5mm pitch
- Number Of Pins: 240 pins
- Socket Design: clam-shell
- Durability: very durable burn-in socket, at least 50000 guaranteed actuations
- Manufacturer: KZT
- RoHS: RoHS Compliant
- Mounting Type: surface mount, secured with screws to the PCB
- Country Of Origin: China
- Stock Availability: Out of stock, please inquire for availability

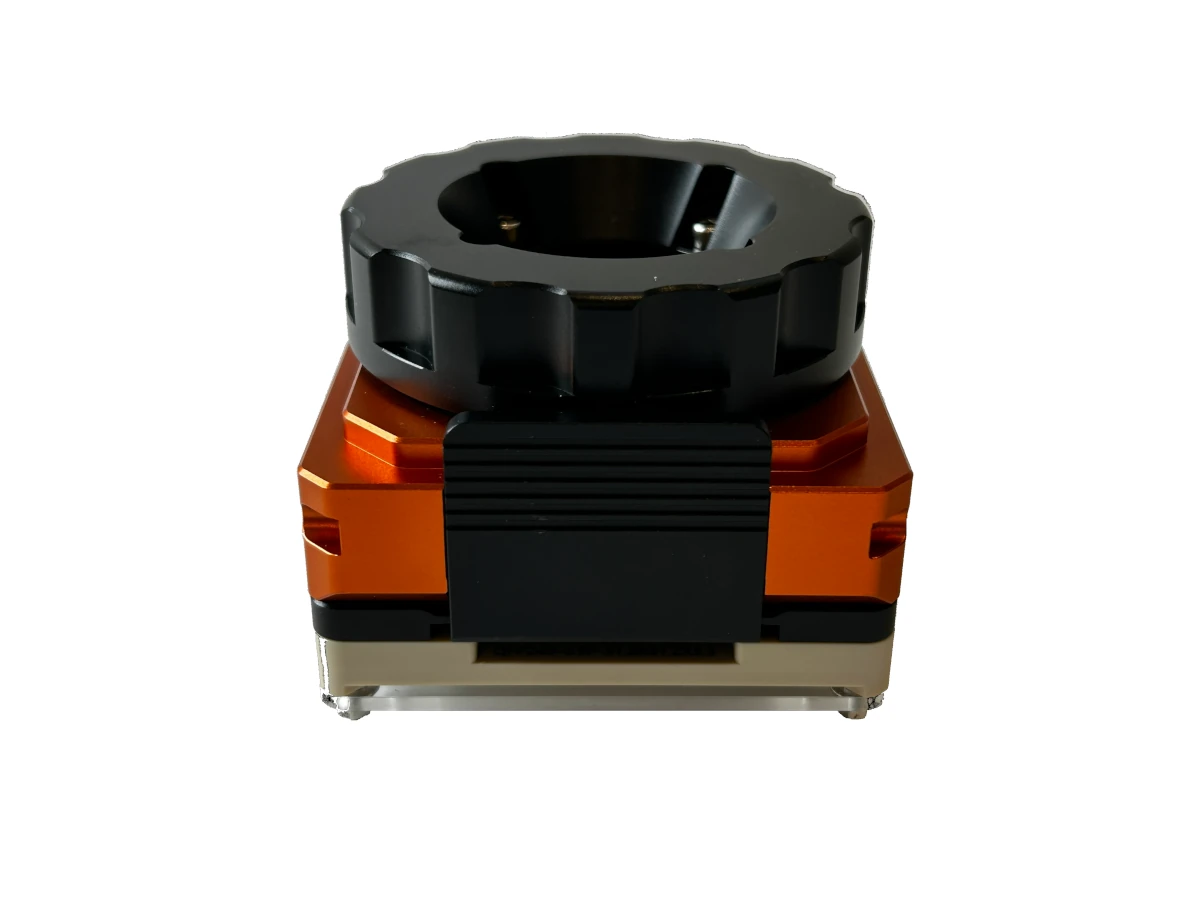

The QFP-240-0.5-601-0000066A test socket, manufactured by KZT, is a precision-engineered solution tailored for QFP240 packages.
Designed to accommodate packages with dimensions of 31.2mm by 31.2mm and a height of 4.06mm, this socket is built to handle the unique requirements of semiconductor testing. It supports 240-pins QFP packages with a pitch of 0.5mm, ensuring accurate alignment and reliable contact during testing.

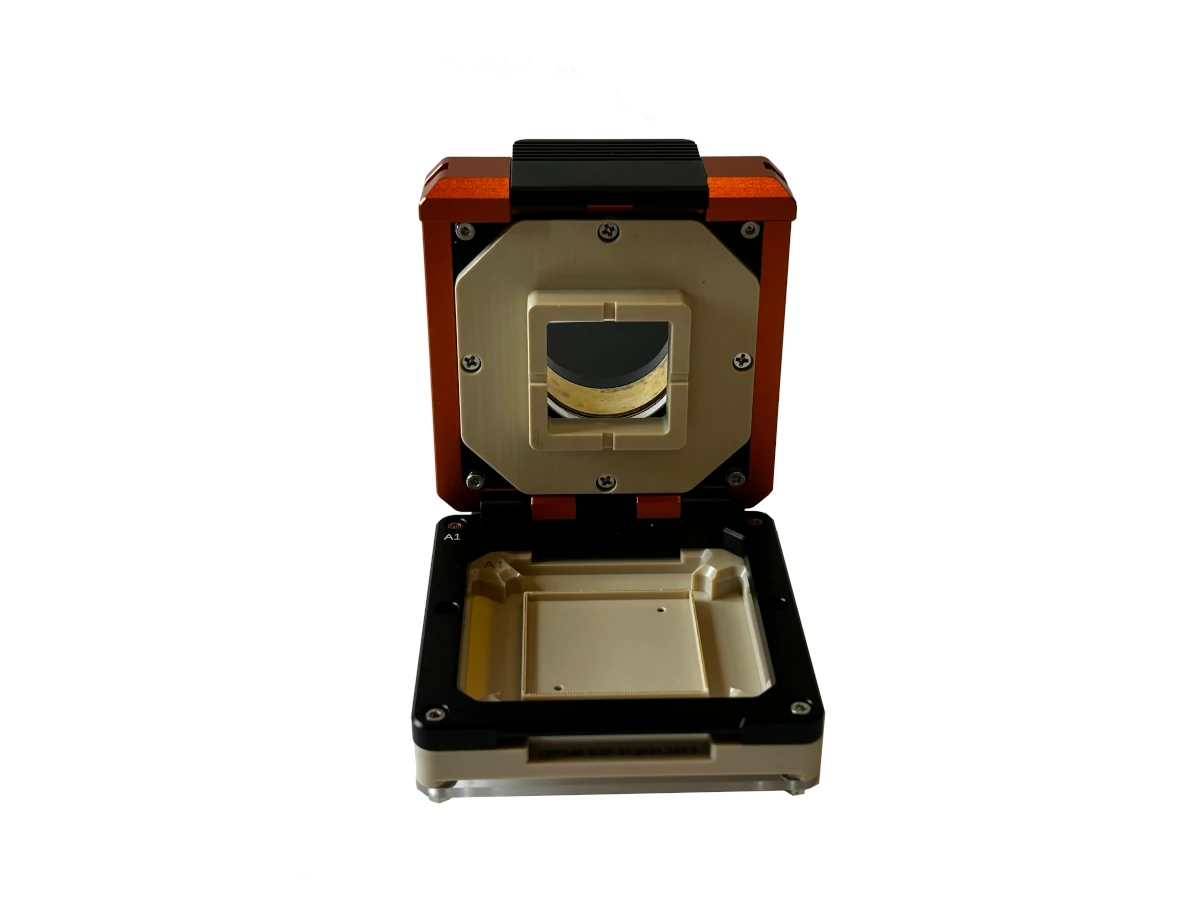

Featuring a Clam-Shell design, this socket ensures a secure and stable connection during testing and higher variability of package thickness acceptance. Its hinged mechanism allows for effortless manual operation, making it ideal for frequent device insertion and removal. Its robust construction is available in a surface mount configuration, secured with screws to the PCB.
Engineered for longevity, it guarantees at least 50000 actuations (Opening and closing the lid counts as one actuation), and standard operational temperature range.
Socket drawing available upon request.
For additional information regarding this part or if you're unsure whether your package is compatible with this socket, please inquire about part number QFP-240-0.5-601-0000066A
| IC dimensions | socket dimensions | pin length | |||
| A x B | C x D | E | F | G x H x I | J |
| 31.2 x 31.2 | 47.48 x 47.48 | - | - | - | - |
| |||||
