IC socket SB0153F-SA

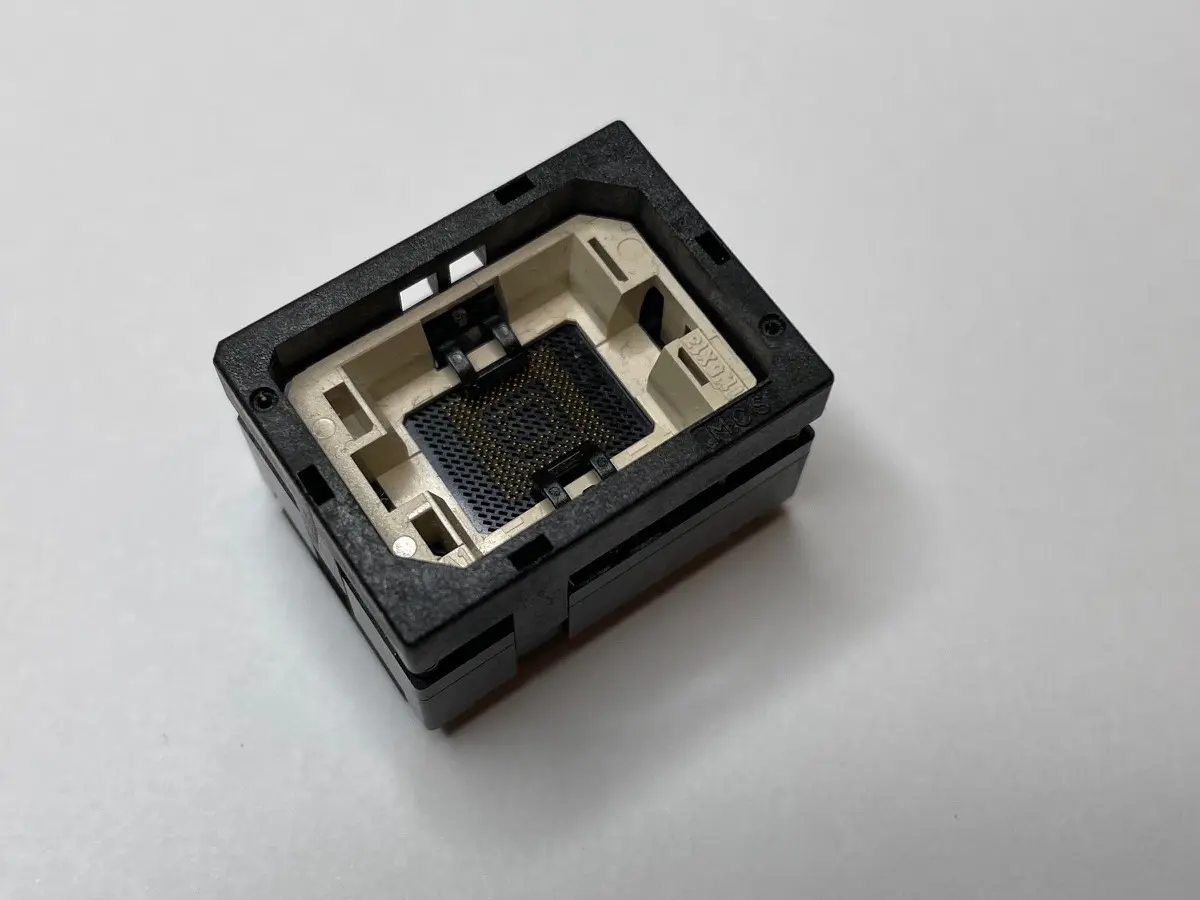

The SB0153F-SA test socket, manufactured by MCS, is a precision-engineered solution tailored for BGA153 packages.
SB0153F-SA, an open-top eMMC test socket designed for reliable and enduring semiconductor testing.
This through-hole type socket is crafted for 153 eMMC packages, featuring a durable build that exceeds 10,000 testing cycles. Ideal for repeated use, the open-top design facilitates seamless device insertion and removal during testing processes. Trust in the durability and longevity of SB0153F-SA, ensuring consistent performance for your semiconductor testing needs.

Designed to accommodate packages with dimensions of 11.5mm by 13mm and a height of 1.10mm, this socket is built to handle the unique requirements of semiconductor testing. It supports 153-balls BGA packages with a pitch of 0.5mm, ensuring accurate alignment and reliable contact during testing.

Crafted with an Open Top design, this socket offers ease of use and a suitable solution for autoloading equipment or robotic handlers. Its robust construction is available in a through hole configuration, solder-mounted on the PCB.

Engineered for longevity, it guarantees at least 10000 actuations (Inserting or removing the device counts as one actuation), and an operational temperature range of -40.00°C to 150.00°C

Socket drawing available upon request.

For additional information regarding this part or if you're unsure whether your package is compatible with this socket, please inquire about part number SB0153F-SA
