IC socket SB5121ASE-TAZB-RA
- Suitable Packages: supports BGA121 packages
- Socket Pitch: 0.65mm pitch
- Number Of Pins: 121 pins
- Socket Design: open-top
- Durability: very durable burn-in socket, at least 25000 guaranteed actuations
- Manufacturer: MCS
- RoHS: RoHS Compliant

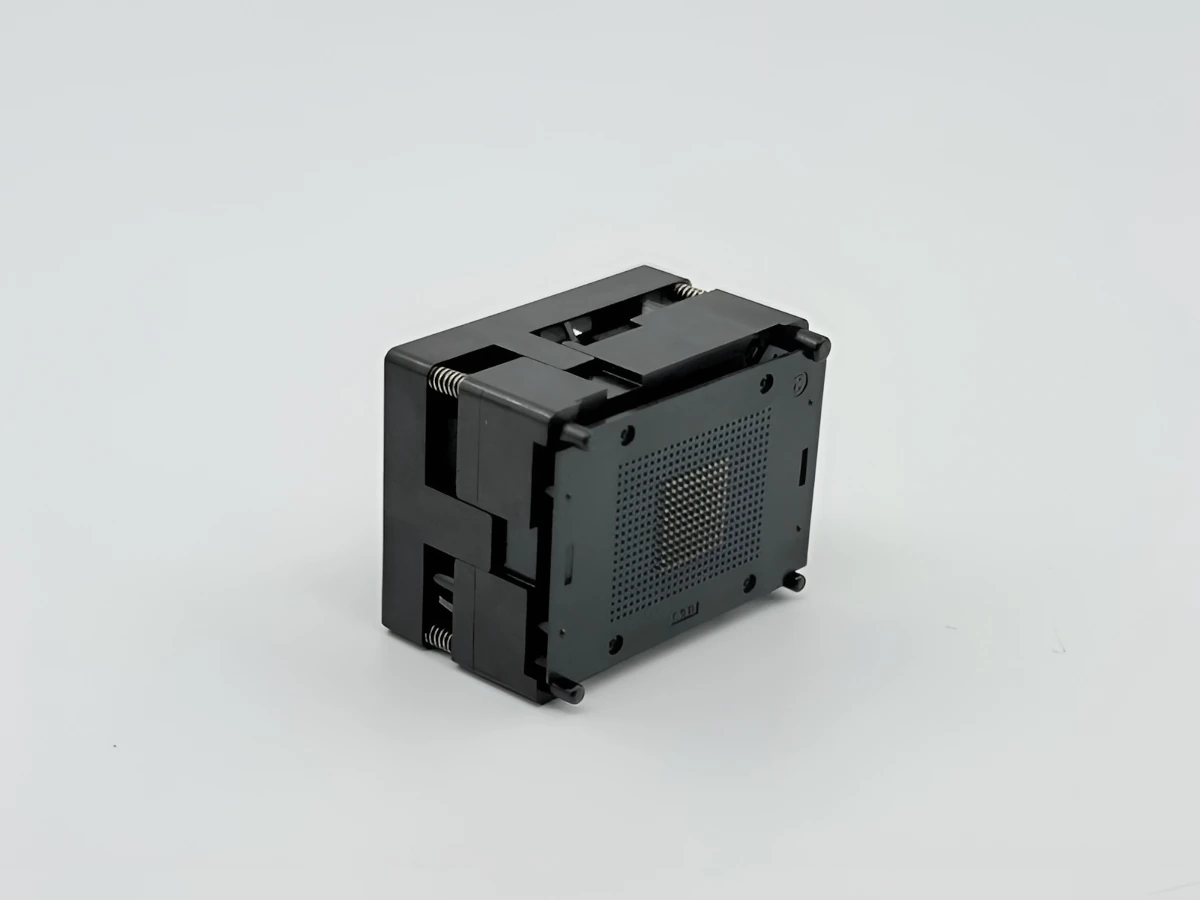

- Mounting Type: through hole, solder-mounted on the PCB
- Country Of Origin: South Korea
- Stock Availability: Out of stock, please inquire for availability

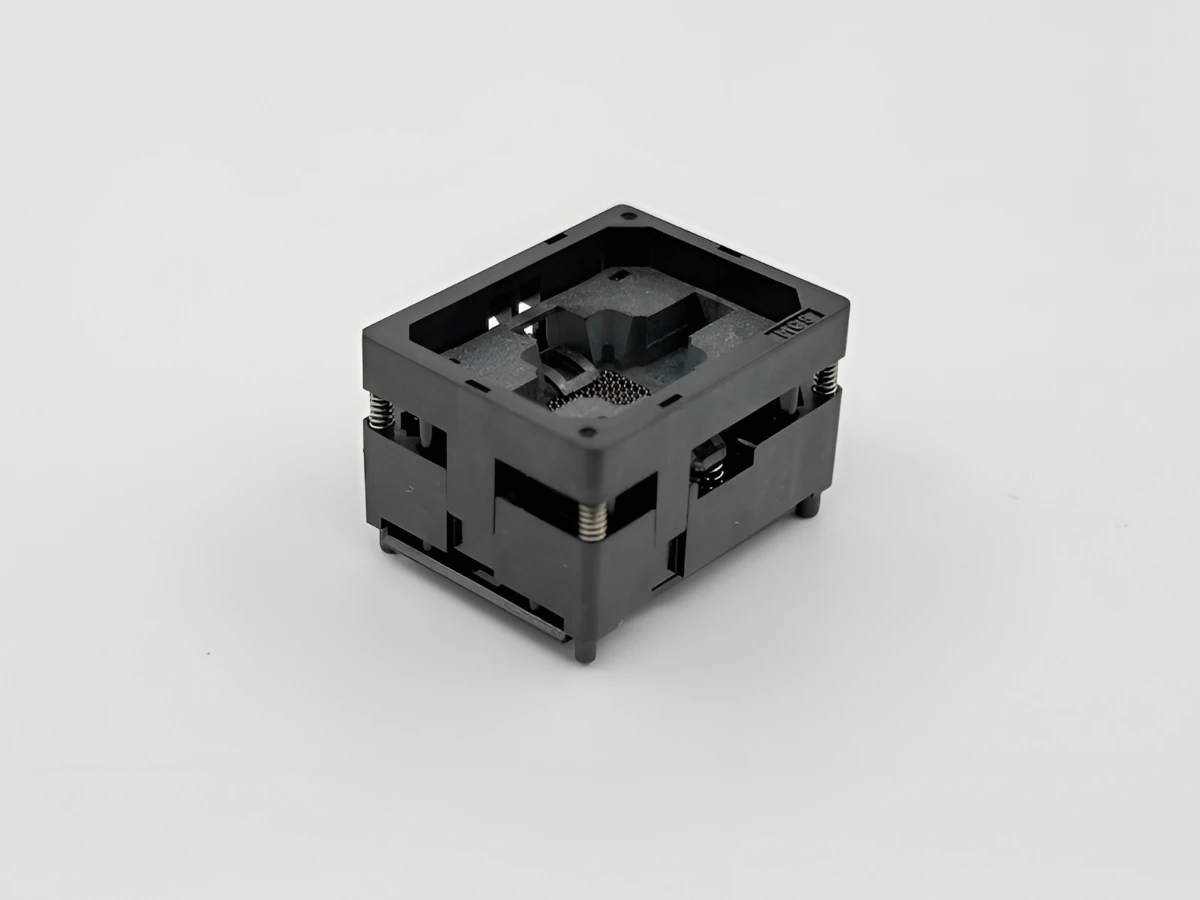

The SB5121ASE-TAZB-RA test socket, manufactured by MCS, is a precision-engineered solution tailored for BGA121 packages.
Designed to accommodate packages with dimensions of 8mm by 8mm, this socket is built to handle the unique requirements of semiconductor testing. It supports 121-balls BGA packages with a pitch of 0.65mm, ensuring accurate alignment and reliable contact during testing.

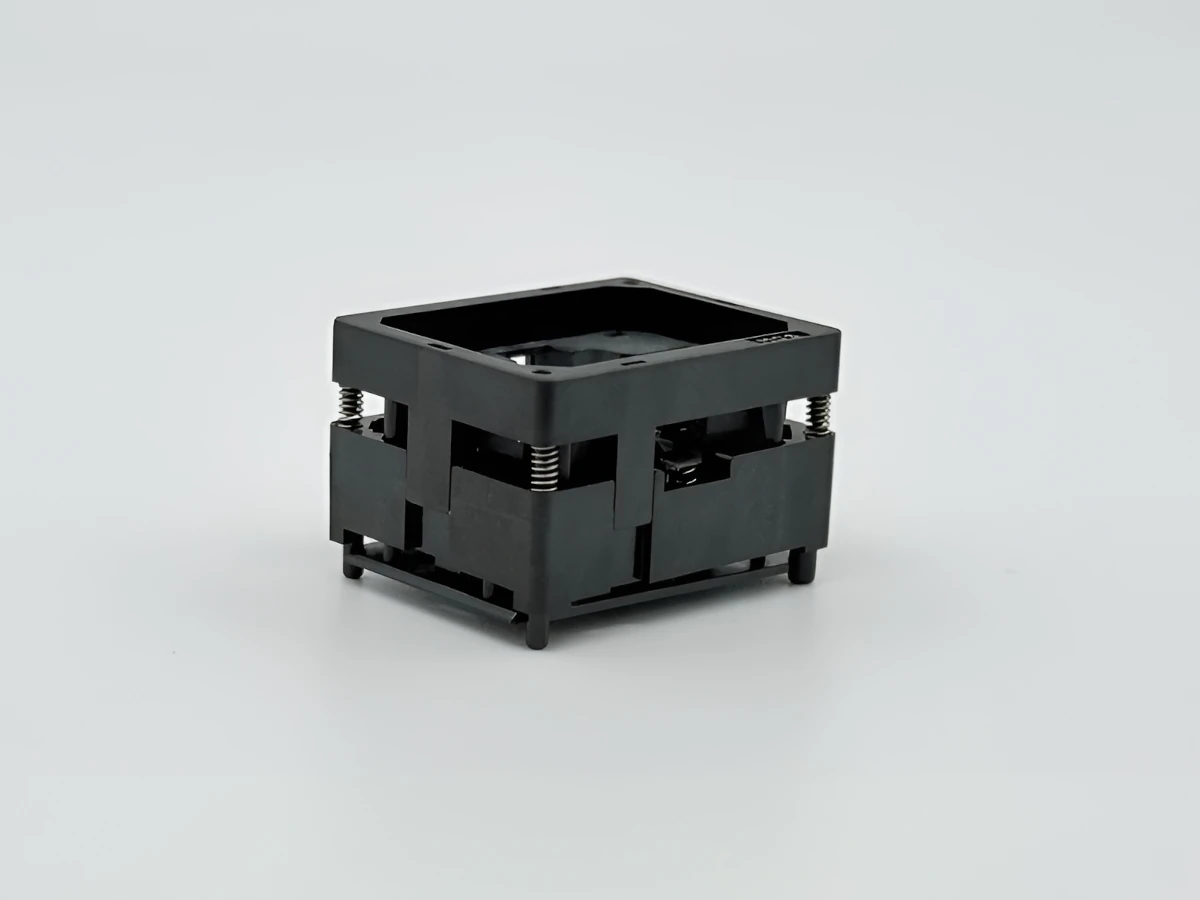

Crafted with an Open Top design, this socket offers ease of use and a suitable solution for autoloading equipment or robotic handlers. Its robust construction is available in a through hole configuration, solder-mounted on the PCB.
Engineered for longevity, it guarantees at least 25000 actuations (Inserting or removing the device counts as one actuation), and an operational temperature range of -40.00°C to 150.00°C
Socket drawing available upon request.
For additional information regarding this part or if you're unsure whether your package is compatible with this socket, please inquire about part number SB5121ASE-TAZB-RA
| IC dimensions | socket dimensions | pin length | |||
| A | B | C | D | G x H x I | J |
| 8 | 8 | 1.52 | 28 x 22 x 15.40 | 2.20 | |
| |||||
