IC socket SOP24-3.0-39x37.5x25
- Suitable Packages: supports SOP24 packages
- Socket Pitch: 3.0mm pitch
- Number Of Pins: 24 pins
- Socket Design: clam-shell
- Durability: very durable burn-in socket, at least 25000 guaranteed actuations
- Manufacturer: S-C
- RoHS: RoHS Compliant
- Mounting Type: surface mount, secured with screws to the PCB
- Country Of Origin: China
- Stock Availability: Out of stock, please inquire for availability
The SOP24-3.0-39x37.5x25 test socket, manufactured by S-C, is a precision-engineered solution tailored for SOP24 packages.
Designed to accommodate packages with specific dimenensions, this socket is built to handle the unique requirements of semiconductor testing. It supports 24-pins SOP packages with a pitch of 3.0mm, ensuring accurate alignment and reliable contact during testing.

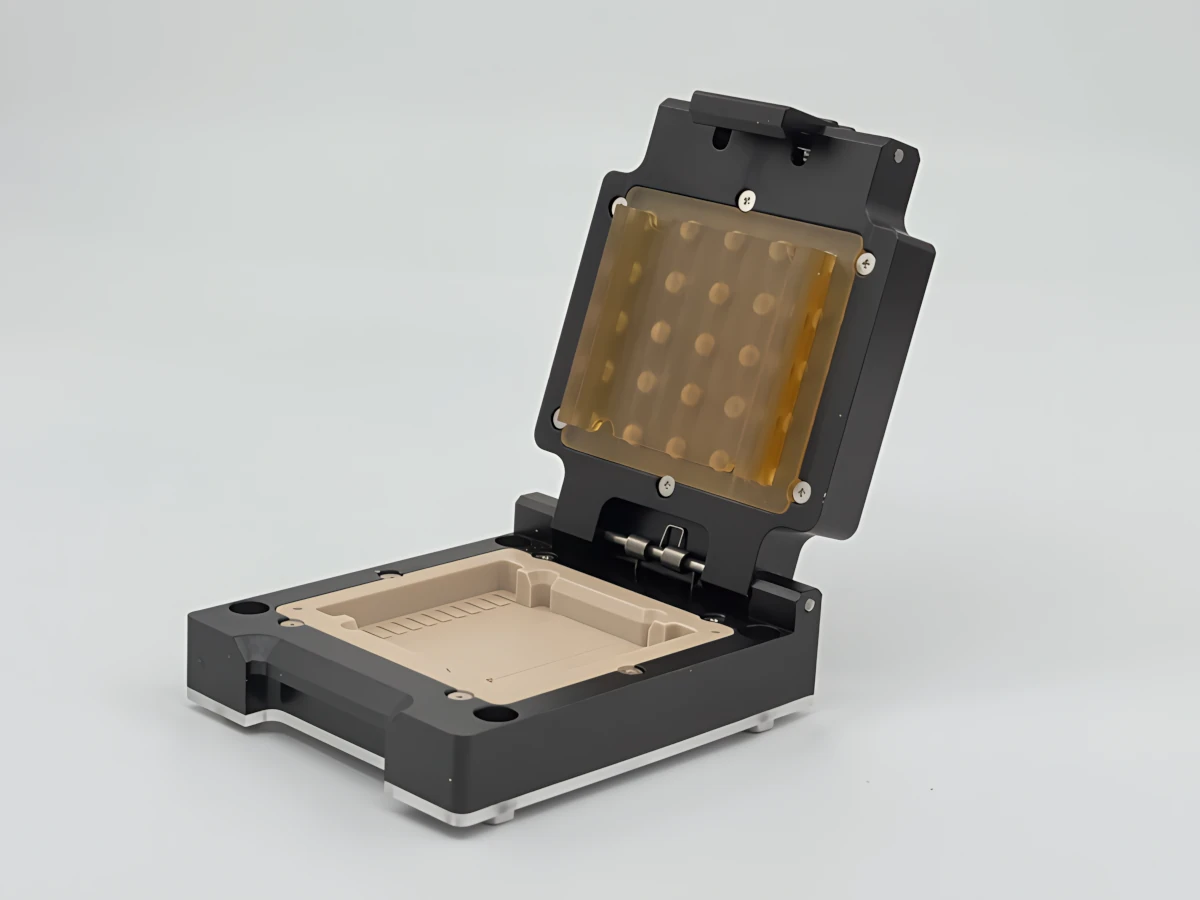

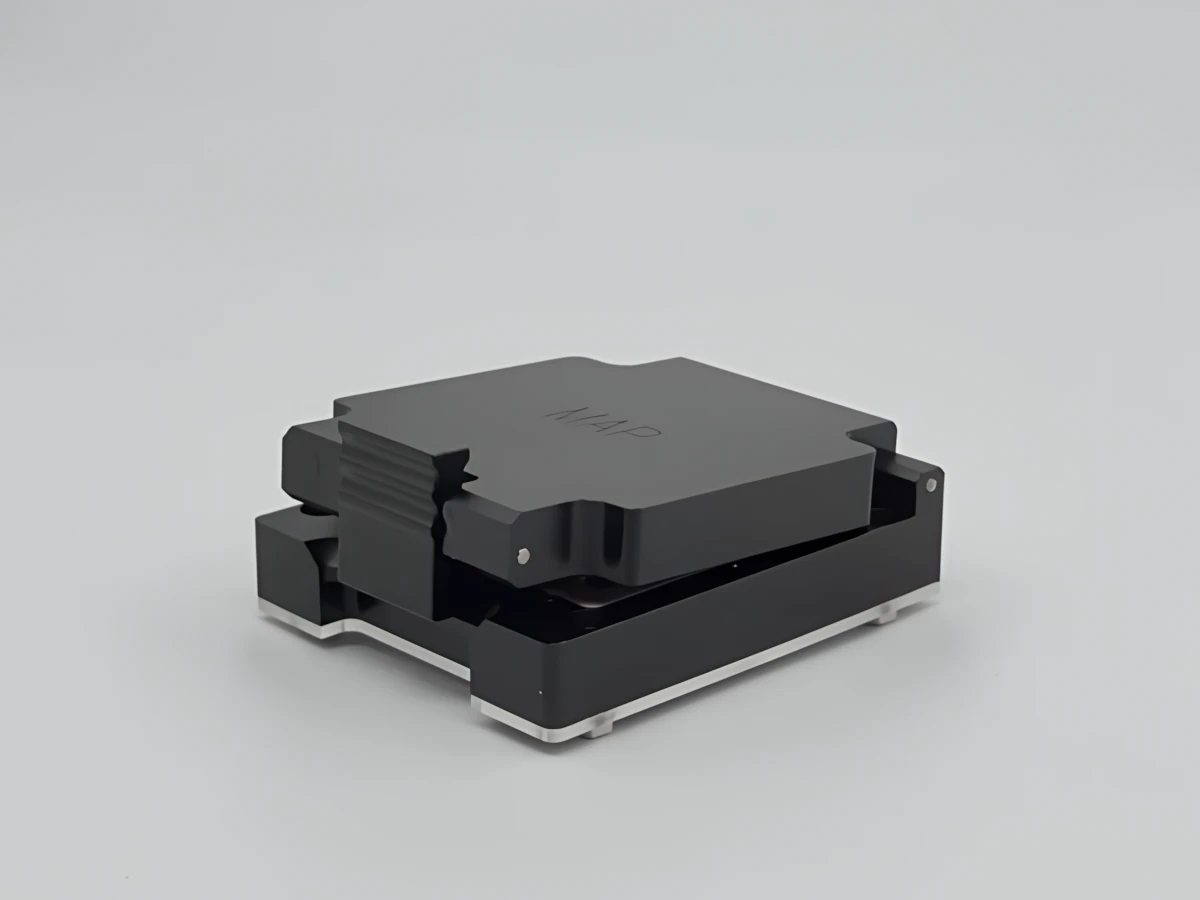

Featuring a Clam-Shell design, this socket ensures a secure and stable connection during testing and higher variability of package thickness acceptance. Its hinged mechanism allows for effortless manual operation, making it ideal for frequent device insertion and removal. Its robust construction is available in a surface mount configuration, secured with screws to the PCB.
Engineered for longevity, it guarantees at least 25000 actuations (Opening and closing the lid counts as one actuation), and an operational temperature range of -65.00°C to 150.00°C
Socket drawing available upon request.
For additional information regarding this part or if you're unsure whether your package is compatible with this socket, please inquire about part number SOP24-3.0-39x37.5x25
| IC dimensions | socket dimensions | pin length | |||
| A | B | C | D | G x H x I | J |
| 37.5 | 39 | 25 | - | - | - |
| |||||
