IC socket YEHS51-0044-04

Suitable Packages: supports LCC44 packages
Socket Pitch: 1.27mm pitch
Number Of Pins: 44 pins
Socket Design: clam-shell
Durability: very durable burn-in socket
Manufacturer: Yamaichi
RoHS: RoHS Compliant
Mounting Type: through hole, solder-mounted on the PCB
Country Of Origin: Japan
Stock Availability: Out of stock, please inquire for availability

IC socket specifications

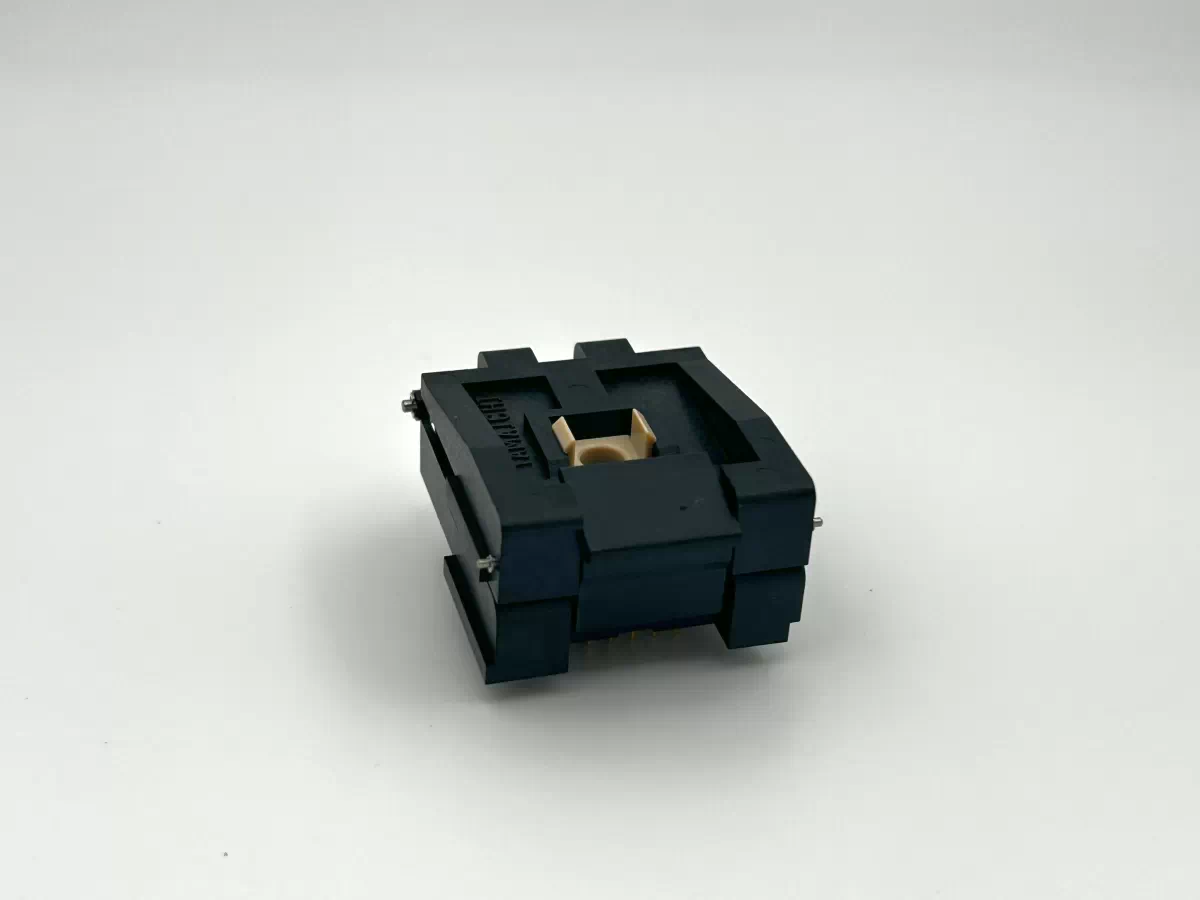

The YEHS51-0044-04 test socket, manufactured by Yamaichi, is a precision-engineered solution tailored for LCC44 packages.

Designed to accommodate packages with dimensions of 16.5mm, this socket is built to handle the unique requirements of semiconductor testing. It supports 44-pins LCC packages with a pitch of 1.27mm, ensuring accurate alignment and reliable contact during testing.

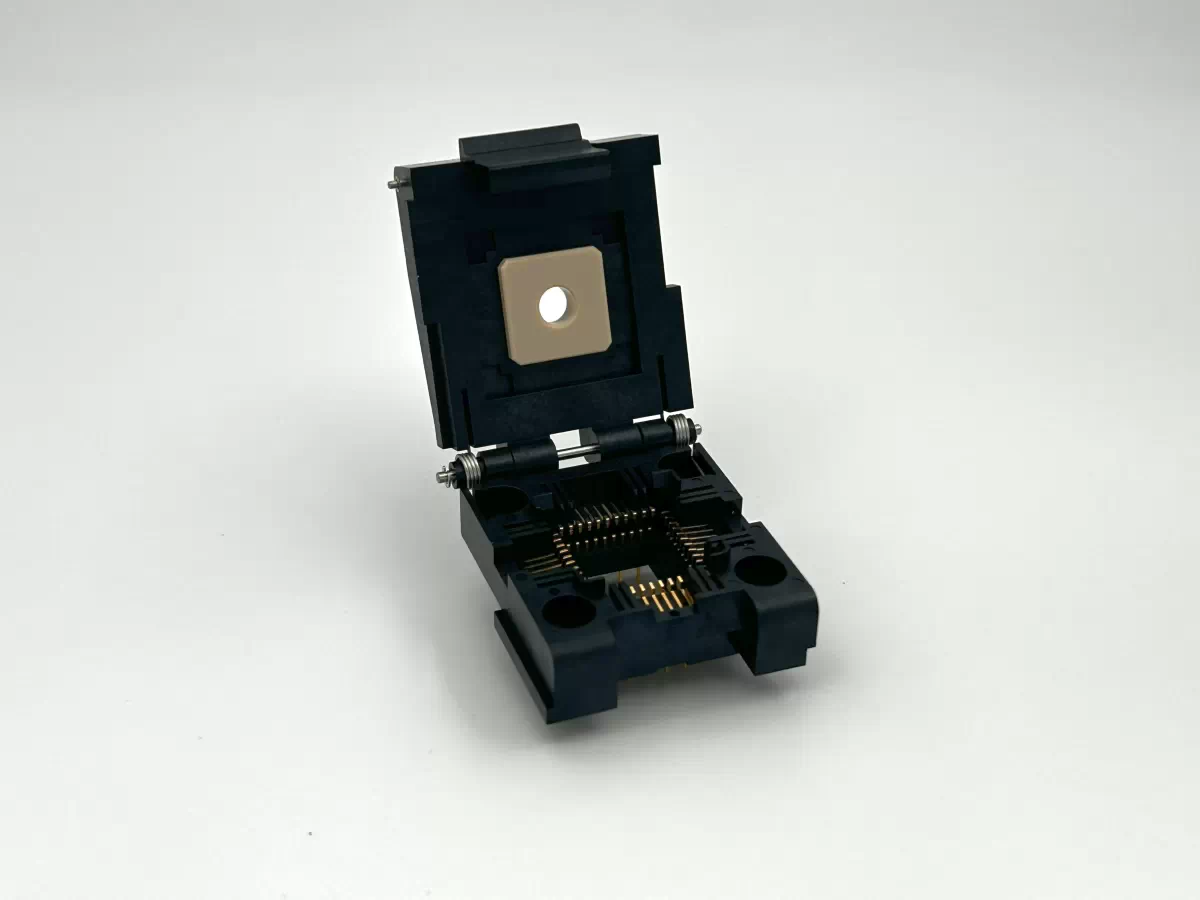

Featuring a Clam-Shell design, this socket ensures a secure and stable connection during testing and higher variability of package thickness acceptance. Its hinged mechanism allows for effortless manual operation, making it ideal for frequent device insertion and removal. Its robust construction is available in a through hole configuration, solder-mounted on the PCB.

Engineered for longevity and standard operational temperature range.

Socket drawing available upon request.

For additional information regarding this part or if you're unsure whether your package is compatible with this socket, please inquire about part number YEHS51-0044-04
